Lithium-E
Lithium-E
Sales Closed
Expected Delivery Mid-November
Limited Batch, One Per Customer. Last run for Stainless Steel & Black Edition

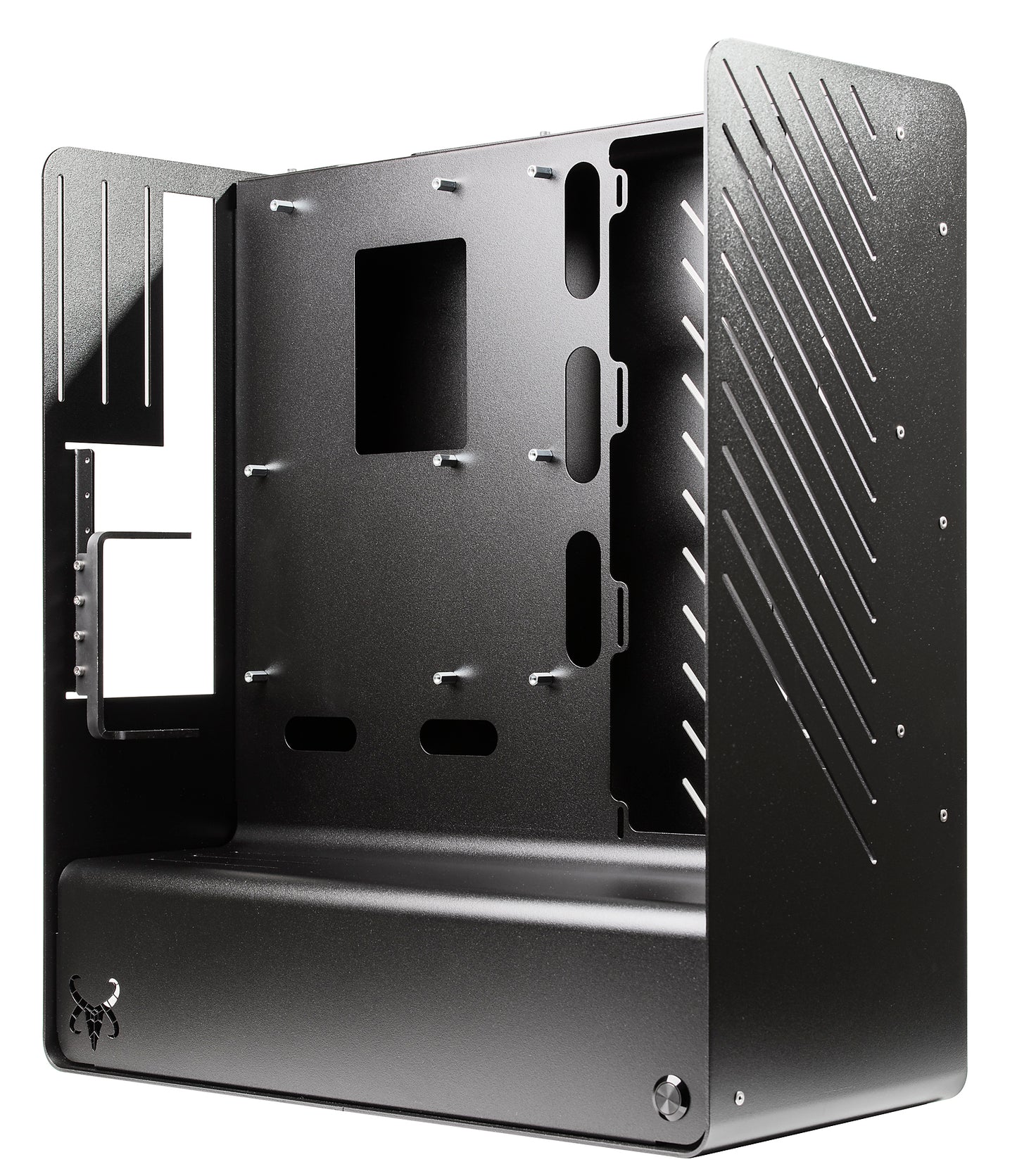

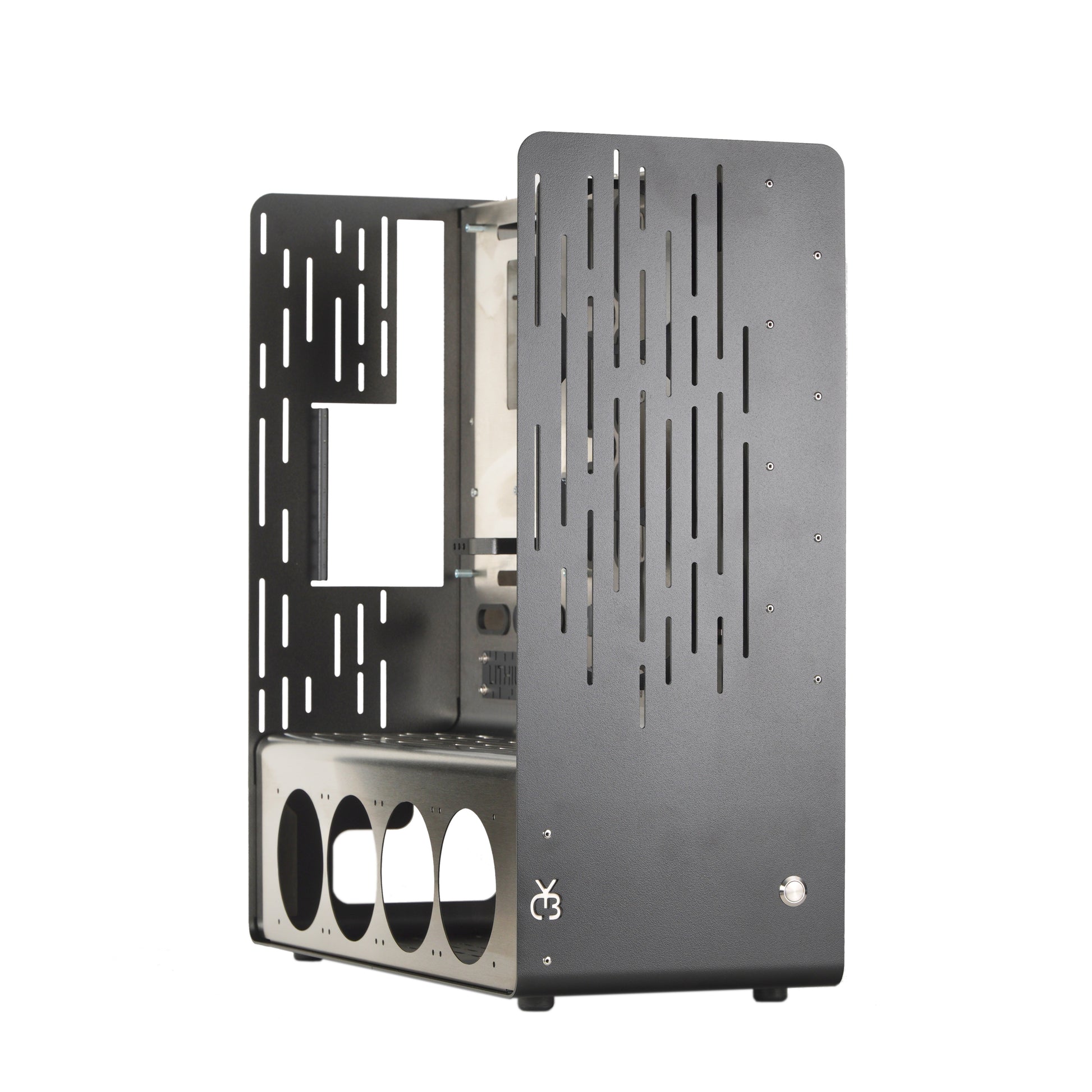

Form meets function in the Lithium-E case by ybd. This robust semi-open eATX/ATX case is designed and made in the USA with timeless character. Utilizing stainless steel & black powdercoated elements, the Lithium-E is a fully featured and deliberately designed platform for experienced enthusiasts.
Materials
Materials
13g CRS Steel & 18g 304 #4 Finish Stainless Steel
Fabrication
Fabrication
Lasercut, Deburred, Pem-inserted, Tapped, Formed, & Painted
Dimensions
Dimensions
23"x24"x10"
Packing
Packing
Calculate at checkout
Storage
Storage
Three 2.5" and 3.5" drive mounting brackets
Compatability
Compatability
eATX(12"x12" / ATX
Water Cooling
Water Cooling
Two 360mm Radiator Mounting Locations
Two EK D5 Pump Locations
Share
Built for those who want more
Radiator/Fan support:
2 x 360mm
1 x 480mm
Fan/Pump support:
1 x 360mm
1 x 120mm
Tube passthrough cutouts:
13 x 20mm cutouts
Motherboard support:
eATX/ATX with cable-routing
GPU support:All sizesBuilt-in GPU Support BracketVertical GPU Mounting ready

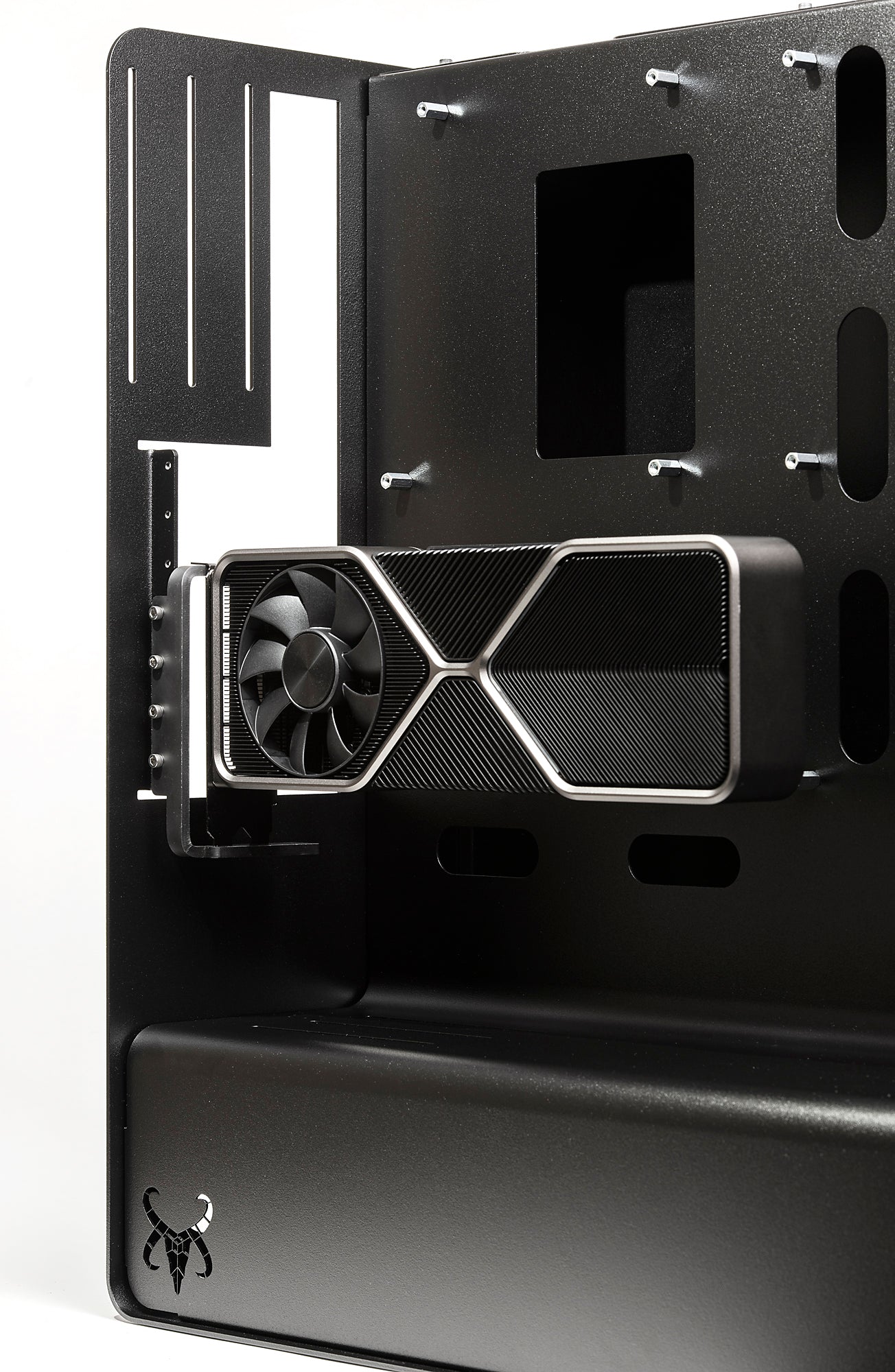

Built in GPU Support Bracket & Vertical GPU Mounting ready (Armature Not Included)

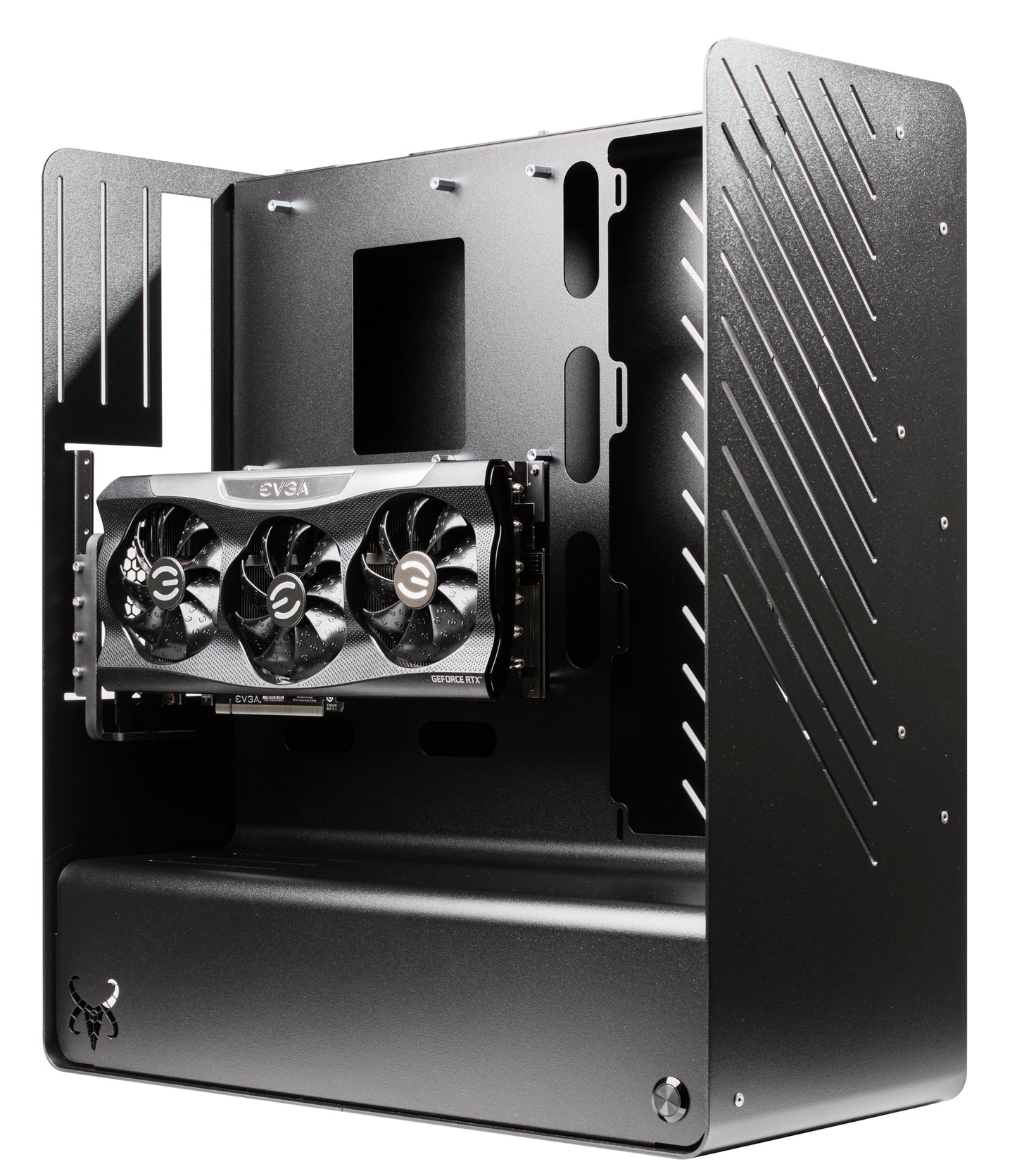

Form Meets Function
The Lithium-E is a robust semi-open eATX/ATX chassis carefully fabricated from Stainless and Mild Steel to create a timeless design. We power your builds with up to 1200mm of radiator capacity, GPU support bracketry, built-in pass through & pump mounting. We have industry leading quality control, where nothing leaves the shop imperfect, and is packed in precision-cut foam. Like a high-end automobile, the Lithium-E invites you to build for your own enjoyment, and for the world to see. High performance, distinctive style, and undeniable character: Lithium-E

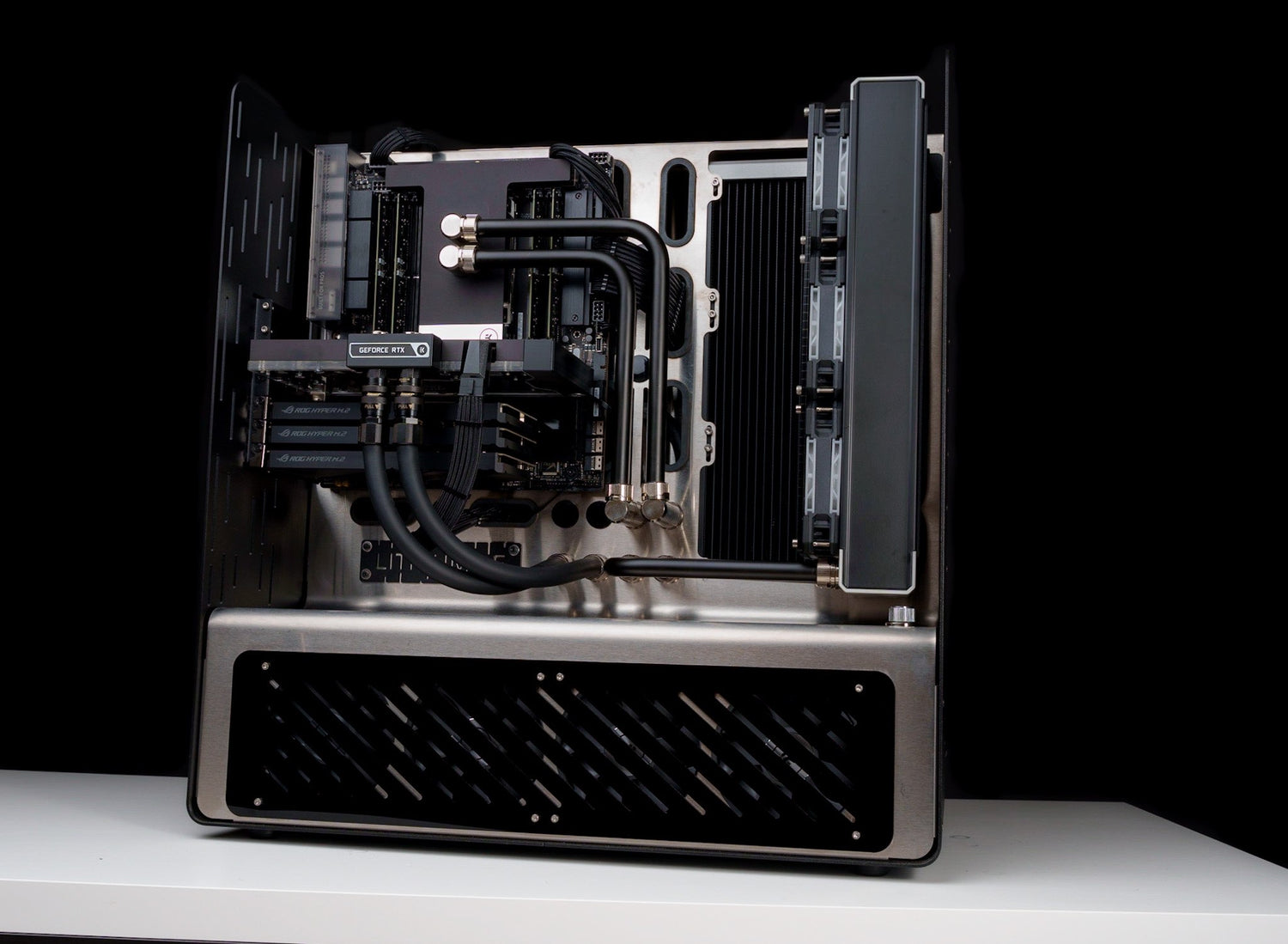

Credit Tim of PC_Werkz

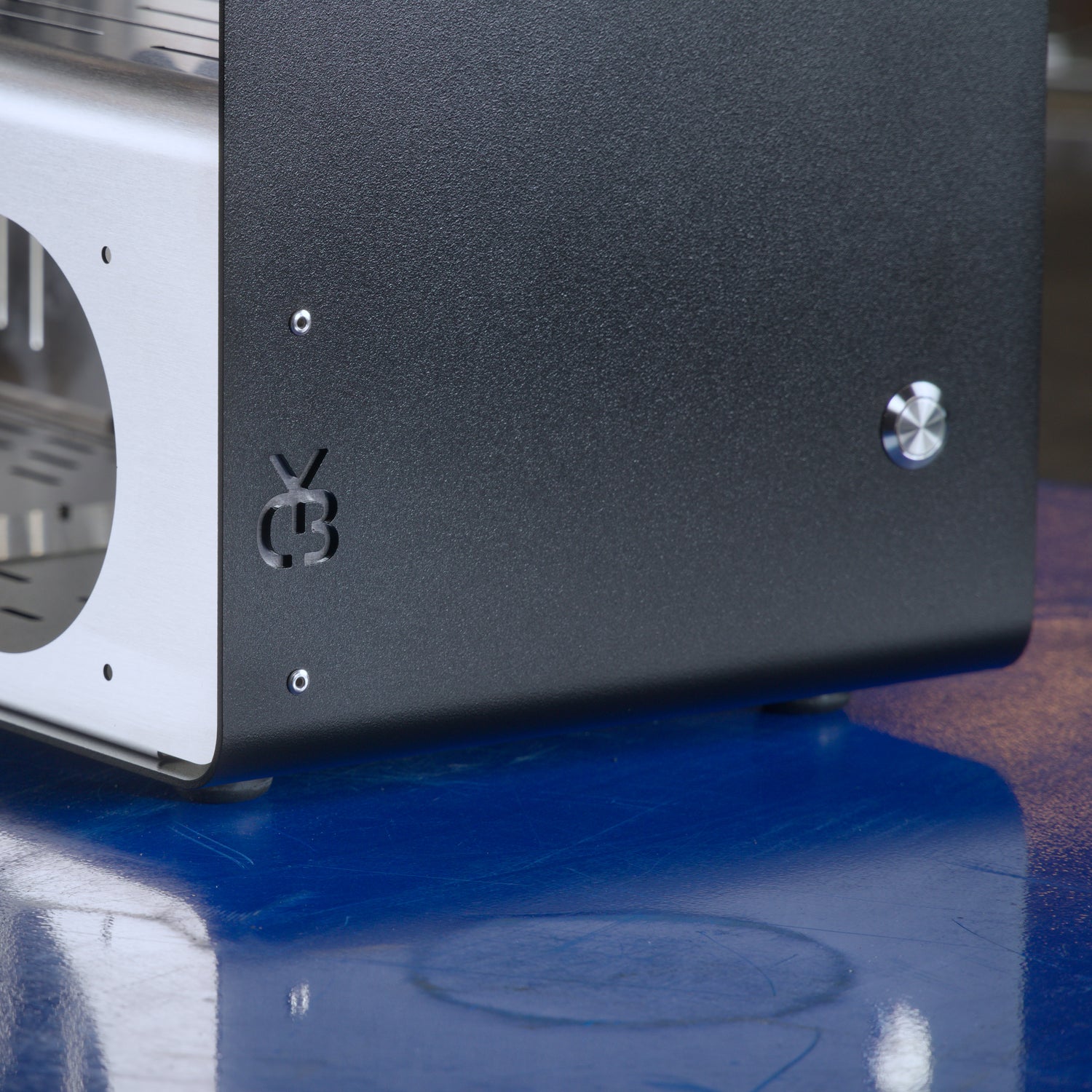

Artisan Crafted
Crafted for those who seek more than just another case, this is functional art. Purposefully designed and fabricated, the Lithium-E seeks to deliver an uncommon experience when compared to the competition.

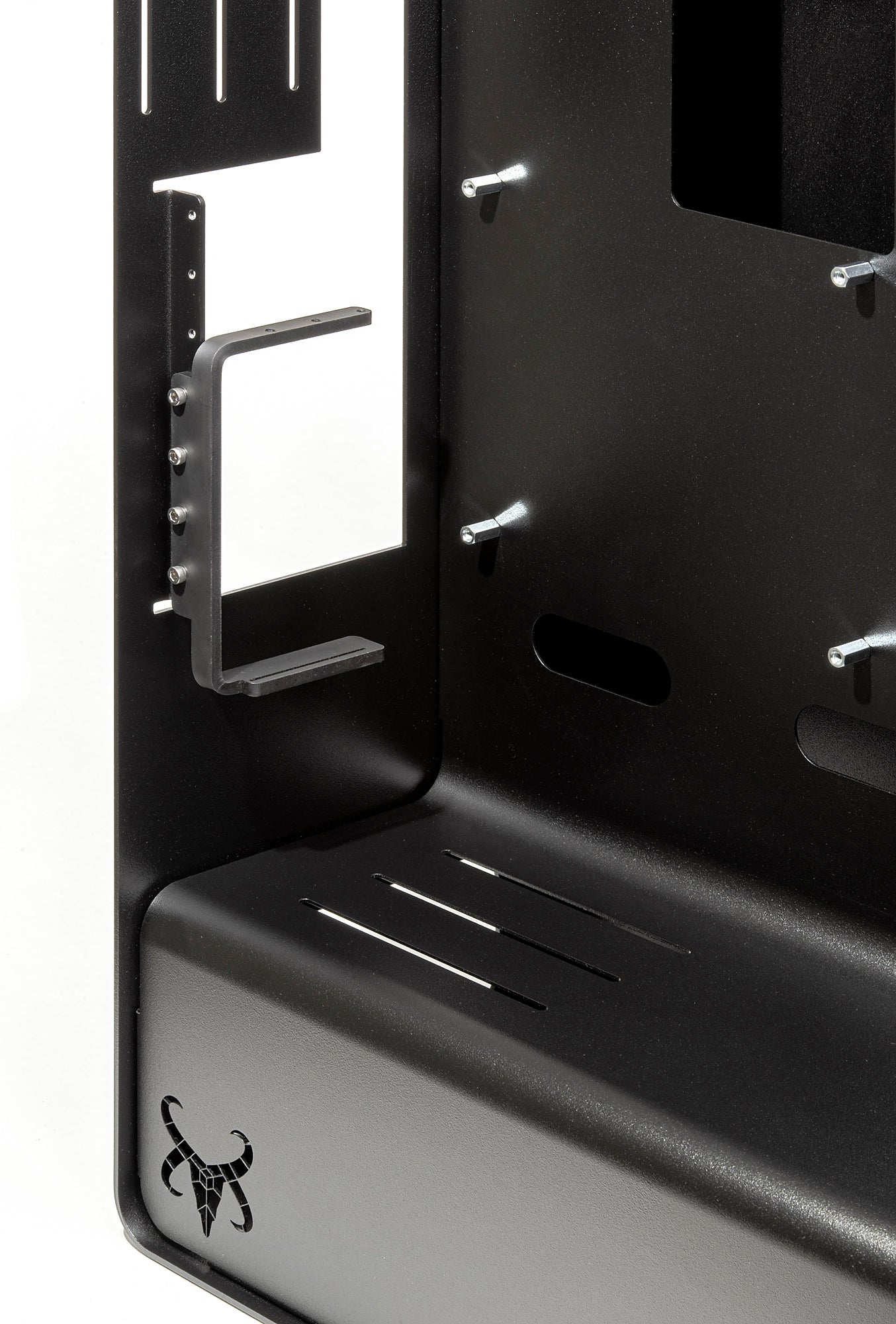

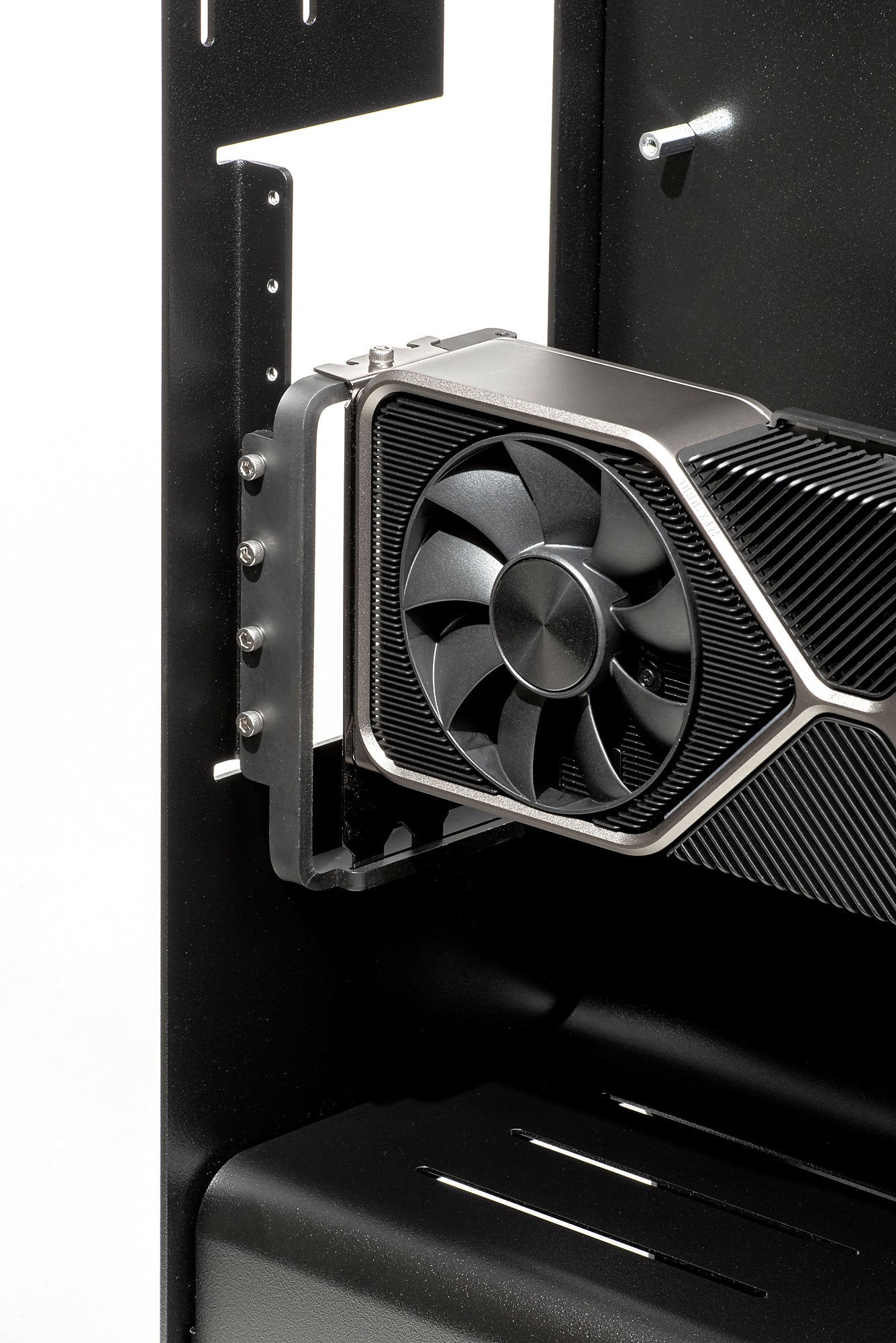

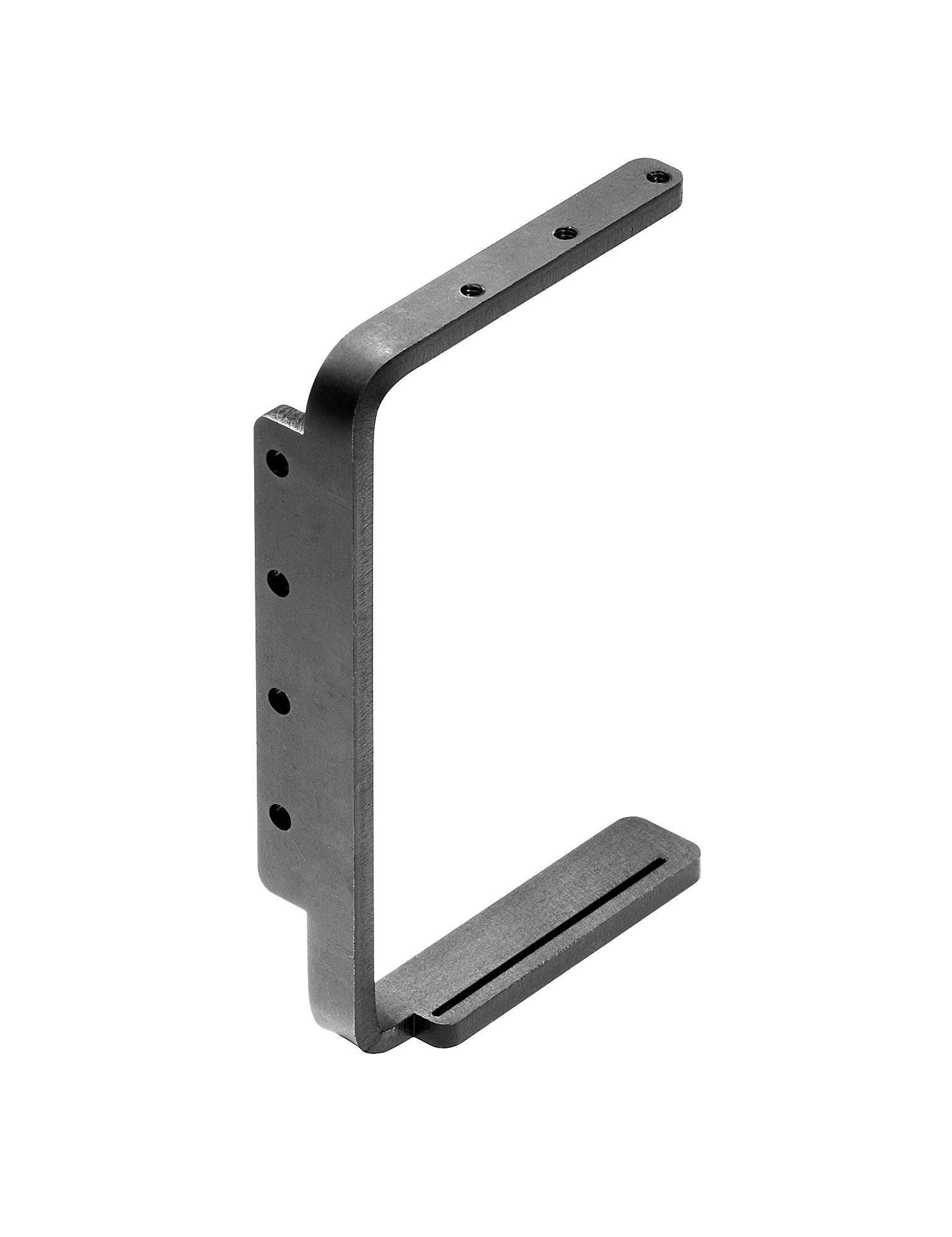

Industry leading Bracketry

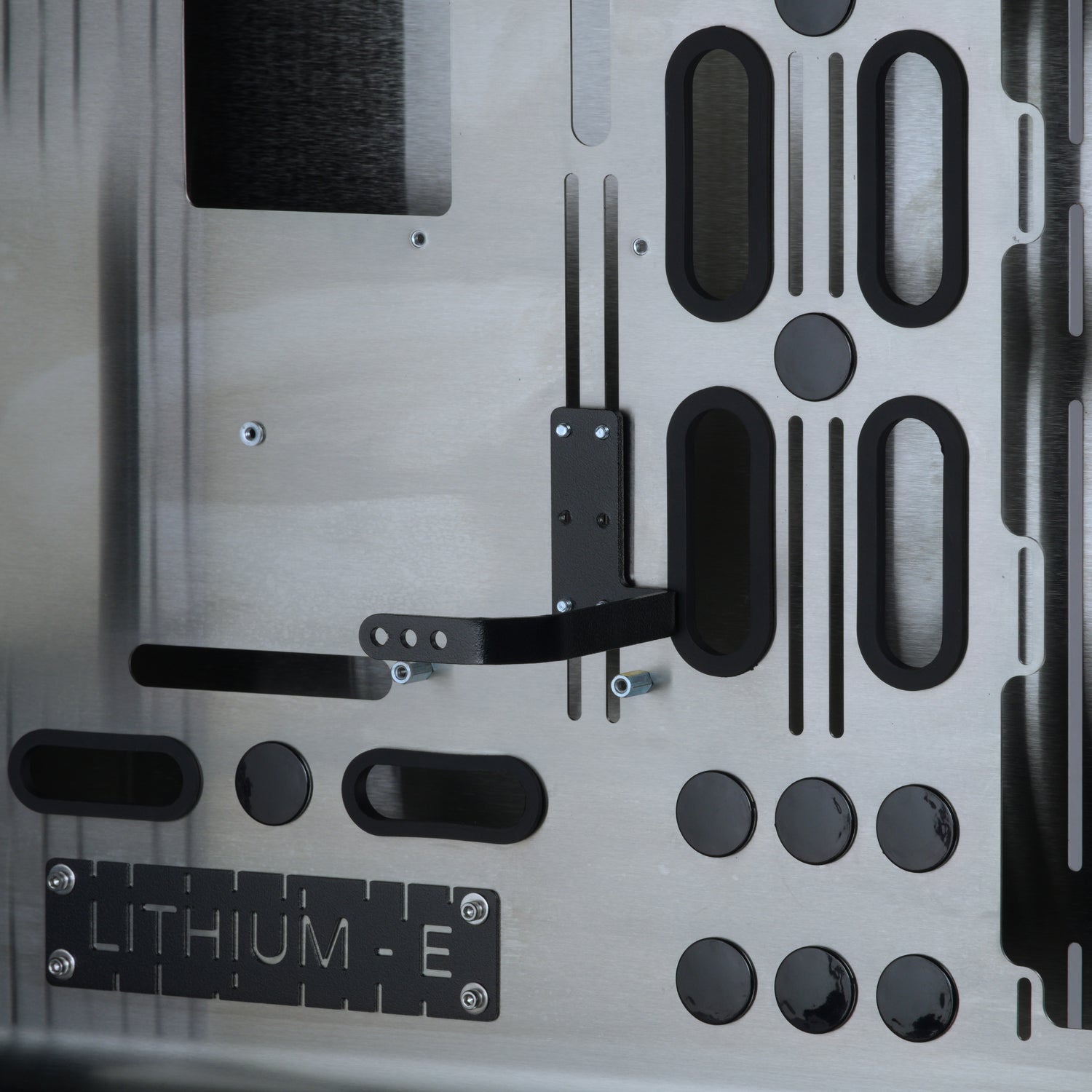

Our new GPU support bracket for standard & vertical GPU mounting made GPU Sag a thing of the past. Crafted from 11g black painted steel and secured with 8-32 machine screws, this bracket comes standard with the Lithium-E.
Chassis Specifications

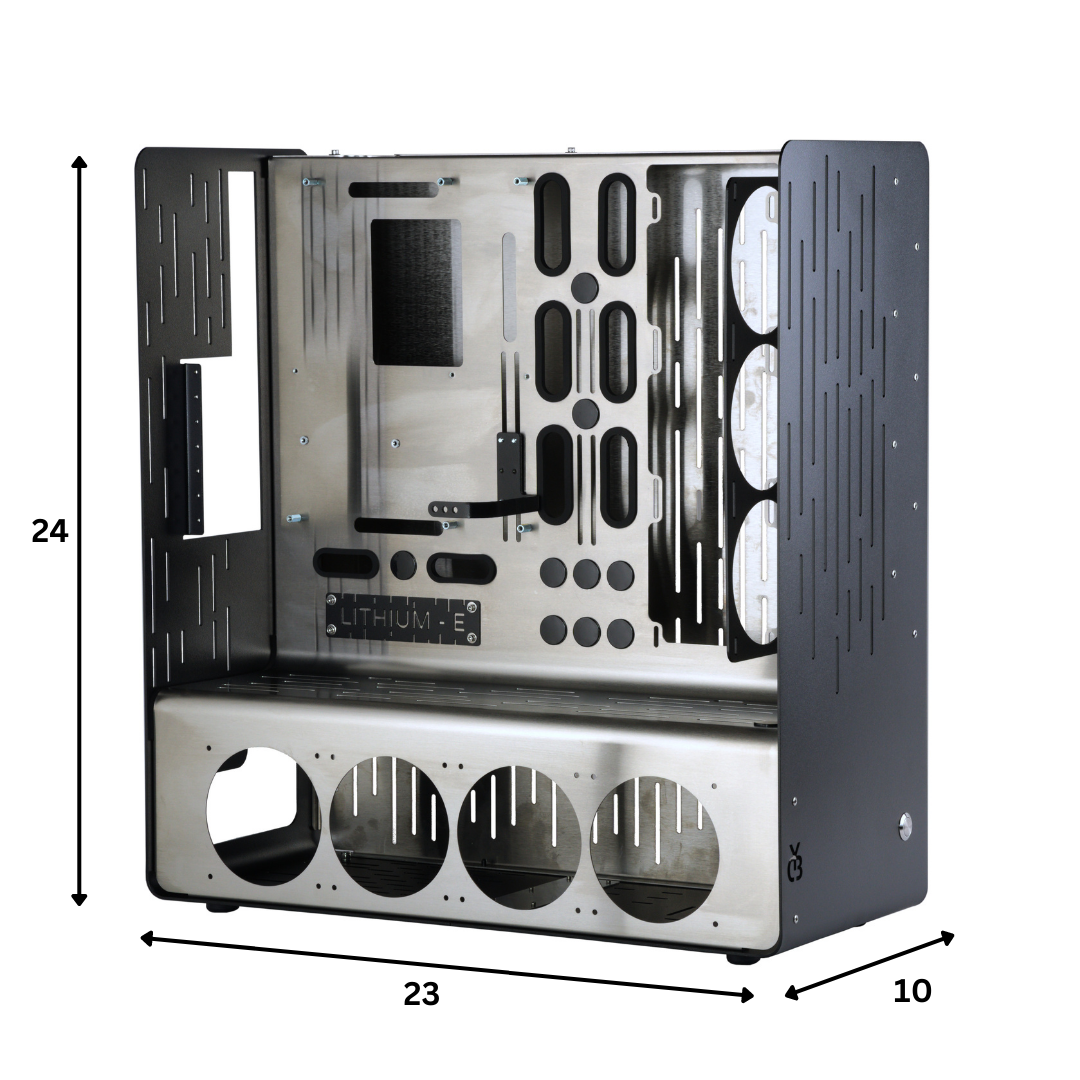

23”(L)x10”(W)x24”(H)
Designed for eATX /
ATX Motherboard, Compatable with mATX & ITX
Fabricated with
Stainless Steel & Painted Black Steel, Stainless Steel Riveted
Construction
GPU Support Bracket
13 x 20mm Holes for
watercooling passthroughs
480mm Basement
Radiator/Fan Mount with 110mm of clearance
360mm Motherboard
Panel Radiator/Fan Mount with 60mm of clearance
360mm Radiator
Bracket, Radiator/Fan Mount with over 60mm of clearance to the front
of the chassis
480mm & 65mm D5
Pattern slot cutout in chassis basement ceiling
120mm & 65mm D5
Pattern slot cutout in chassis side above PCIE mounts
Recessed PSU
Mounting for both vertical & horizontally positioned power
supplies
2 x HDD & SSD
brackets, with additional 20mm holes for optional watercooling
passthroughs on HDD Bracket
Additional 120mm
flex pattern in chassis floor for internal mounting
Batch of 10 units
