What's in the box?
Chassis selection (Motherboard Plate, Wings, PSU Bracket, GPU Mounting Bracket)
Chassis fasteners ( 10-32 SHMS & 6-32 SHMS)
Hex Wrench (7/64 & 5/32)
19mm Power Button & Wire
Adhesive Black Rubber Feet

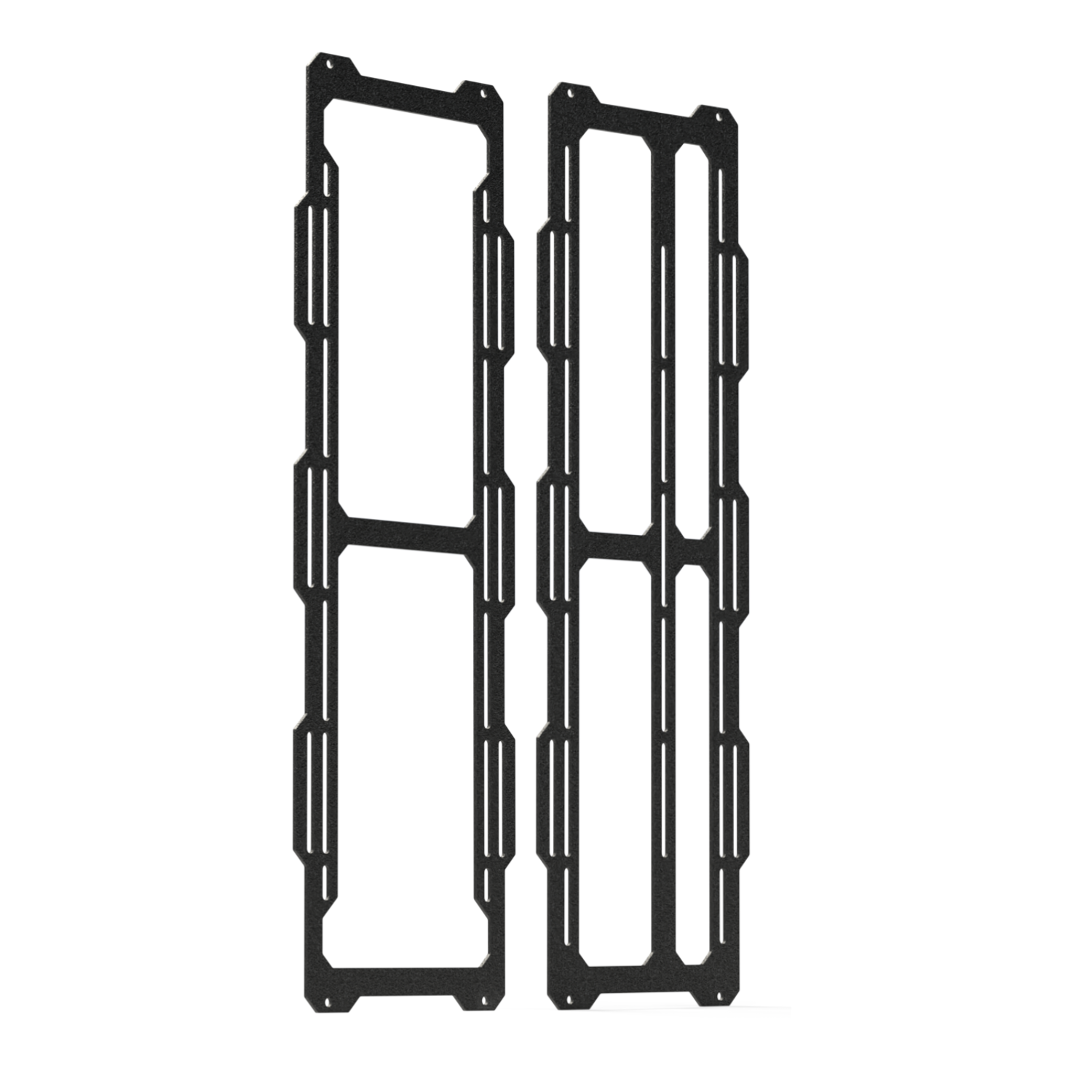

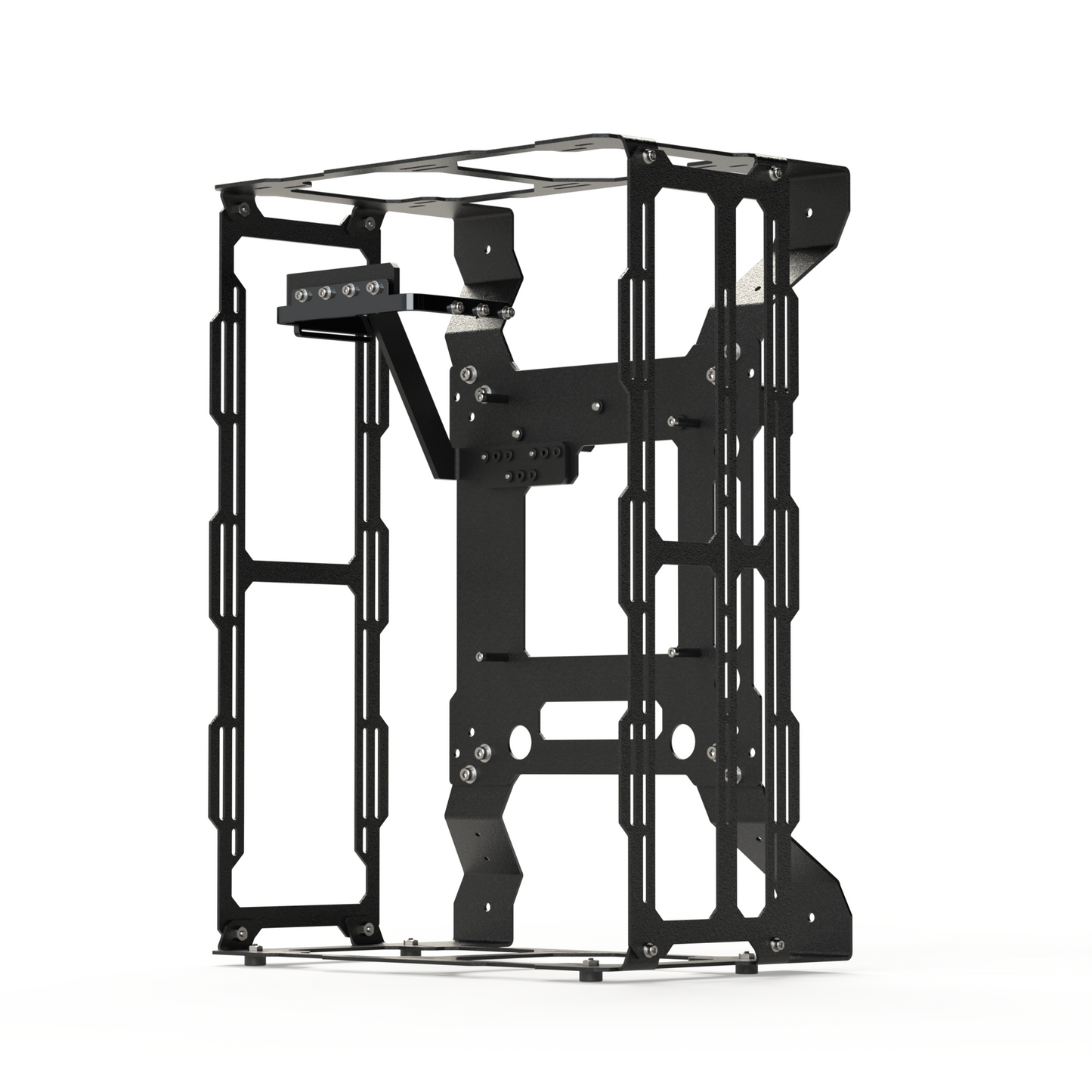

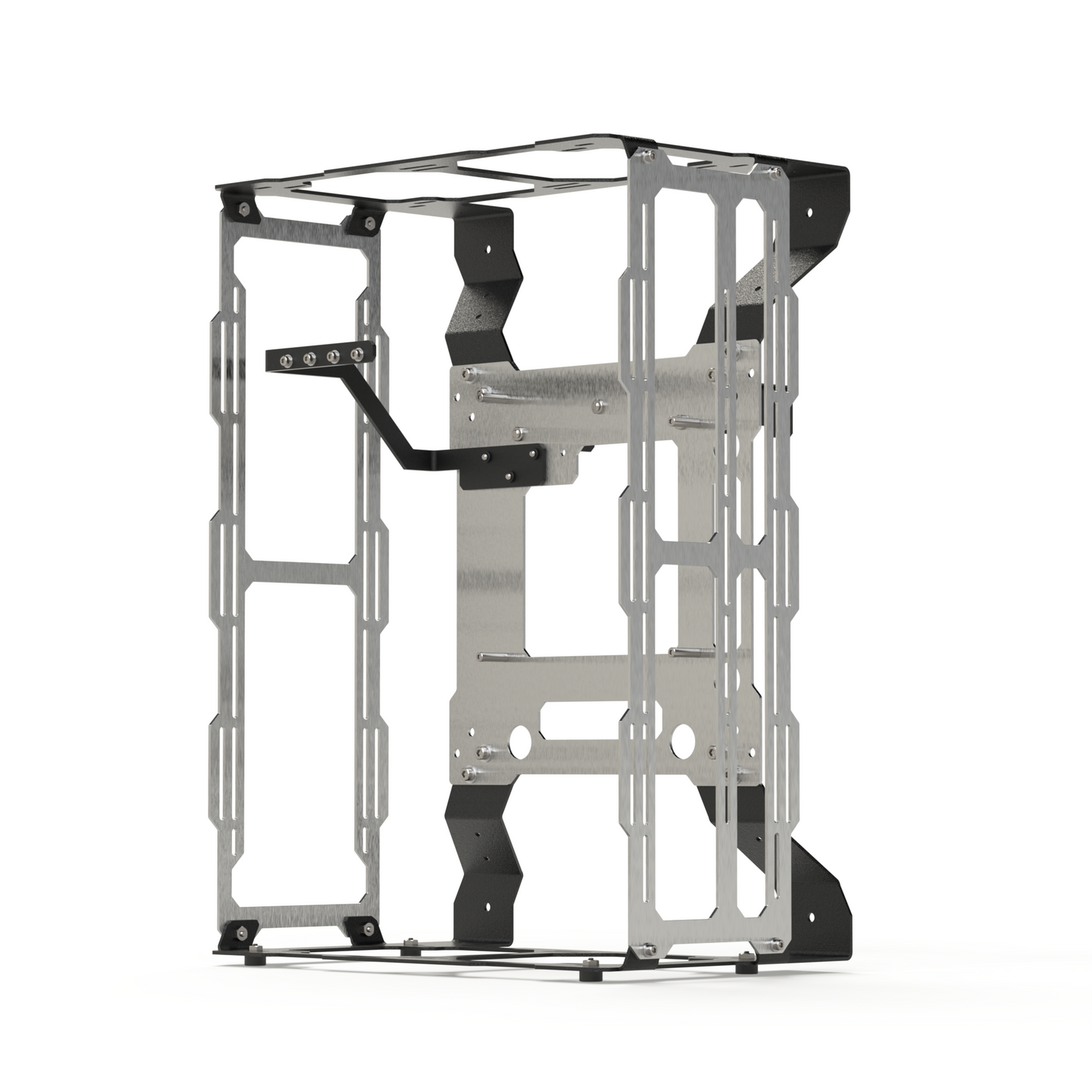

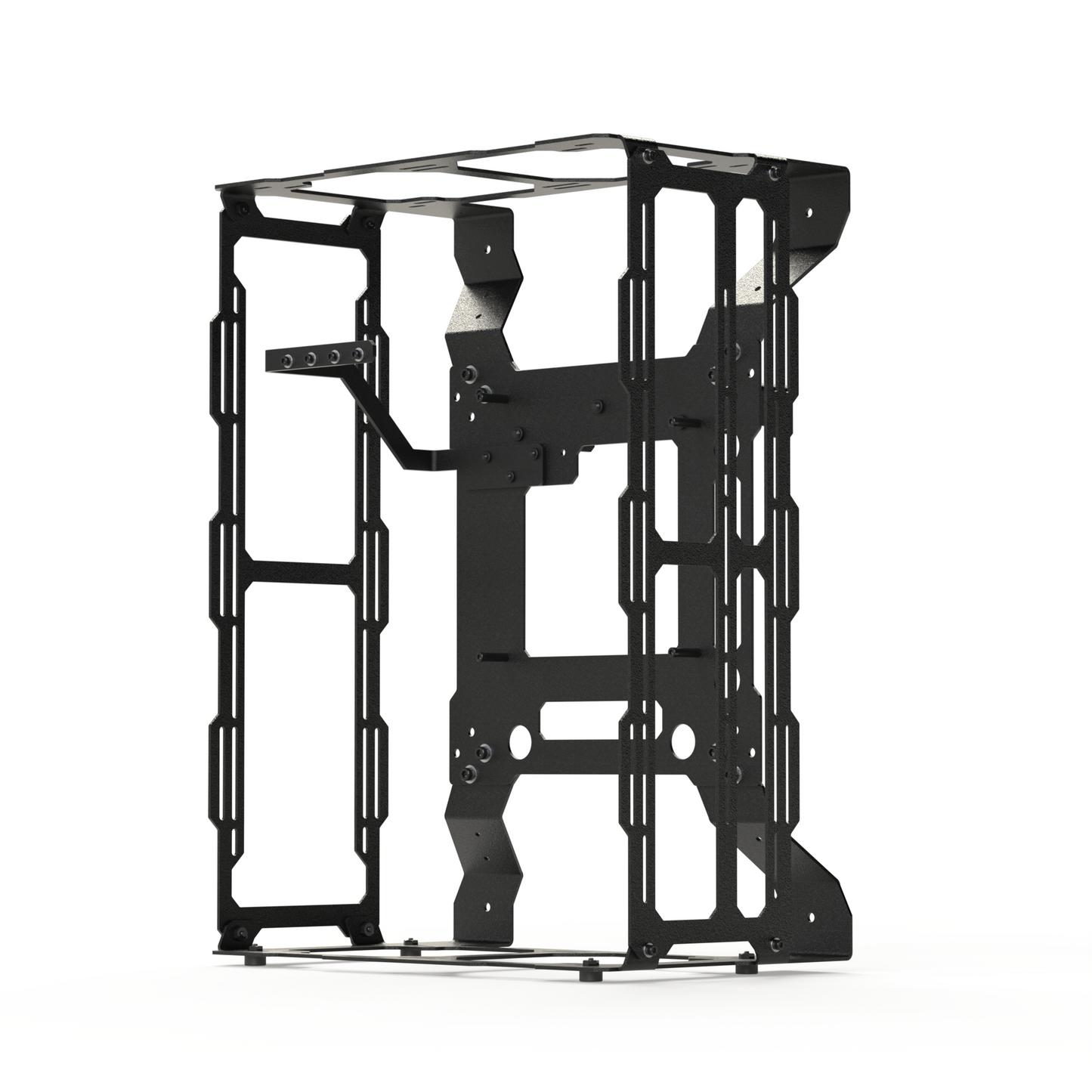

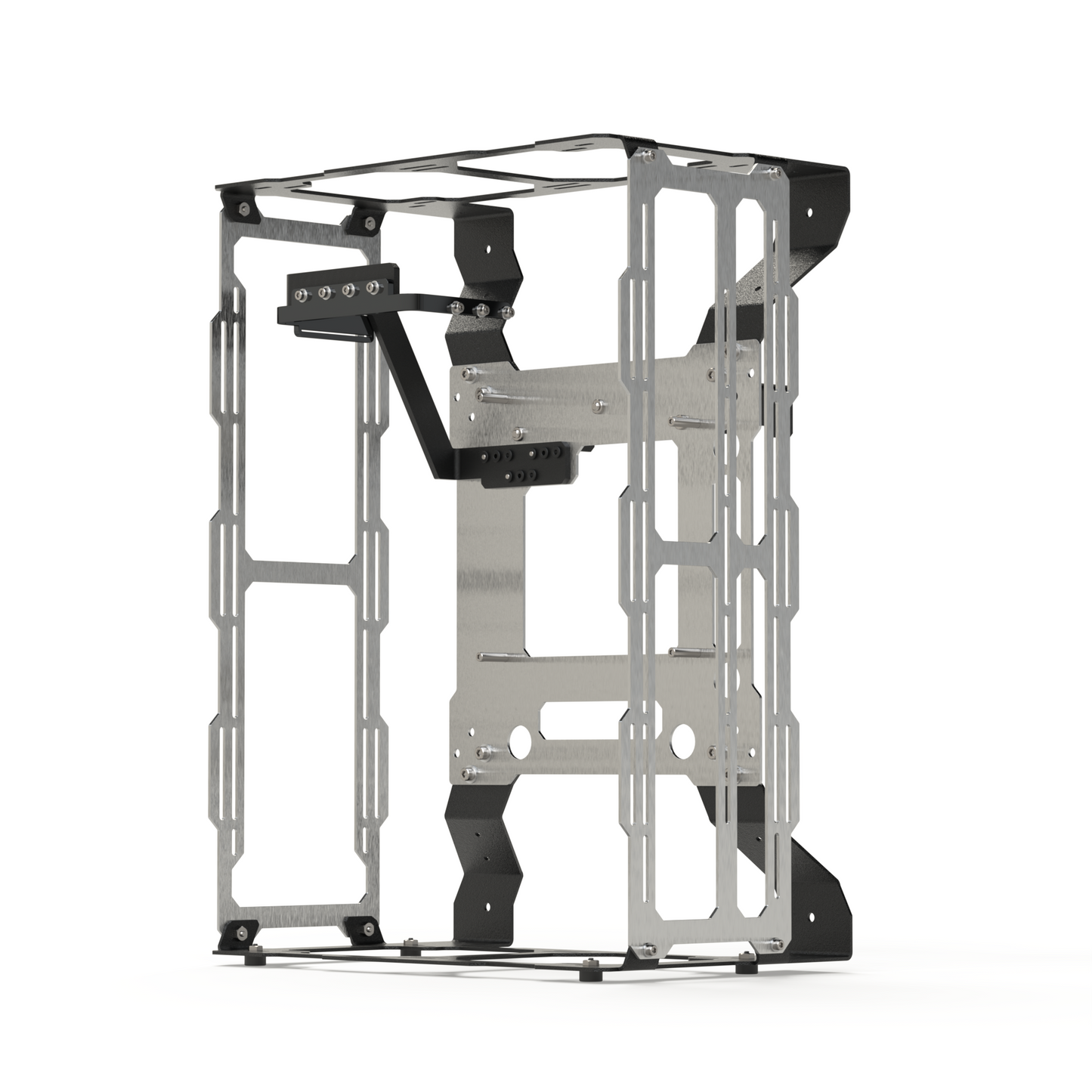

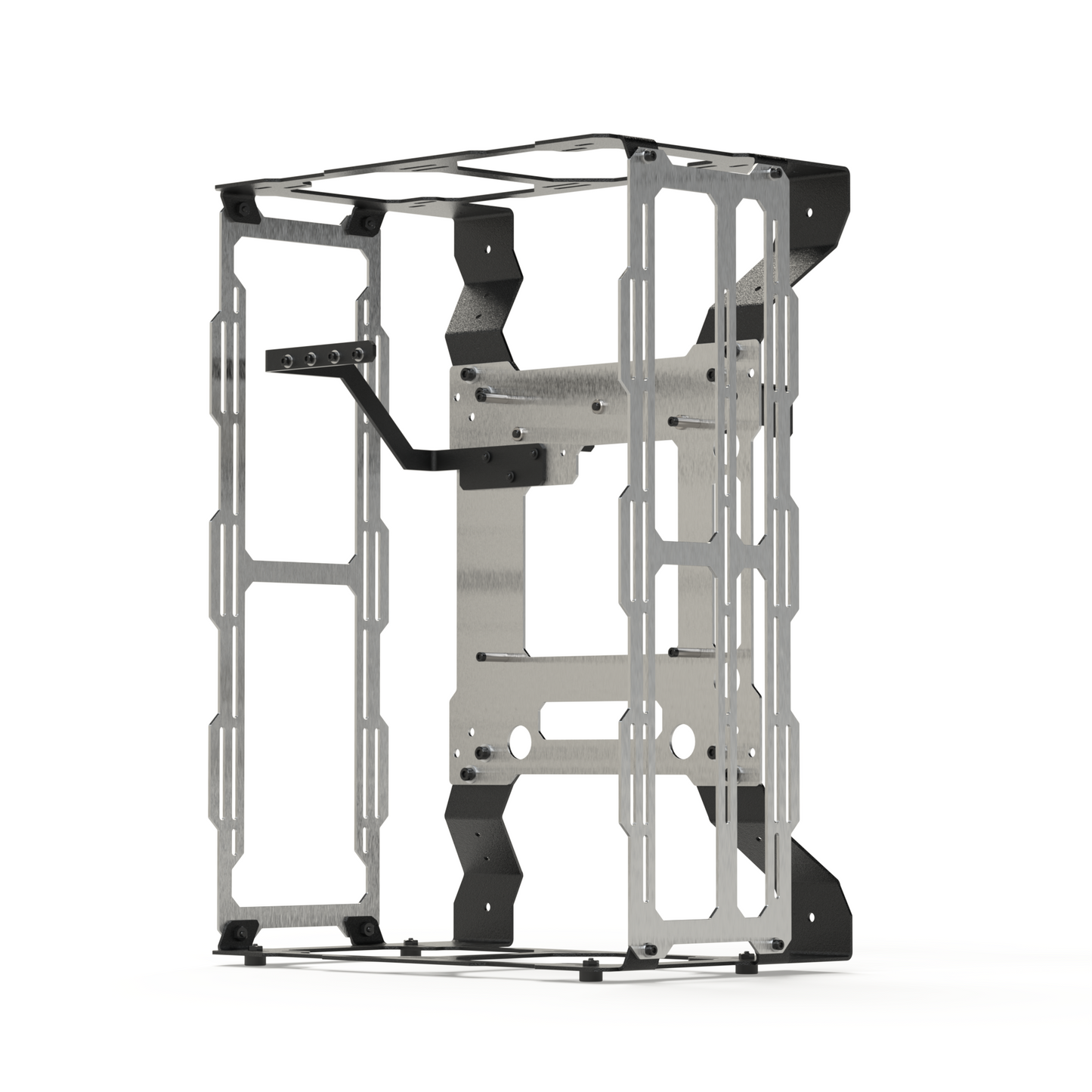

The Original Wing Design.
Each of the two wings support:
-One set of standard radiator hole patterns for 360, 280, or 240mm radiators-One additional 360mm standalone radiator pattern
-2 sets of EK accessory mounting holes (34x65mm)-Room for two detachable 360mm accessory brackets (one included by default)

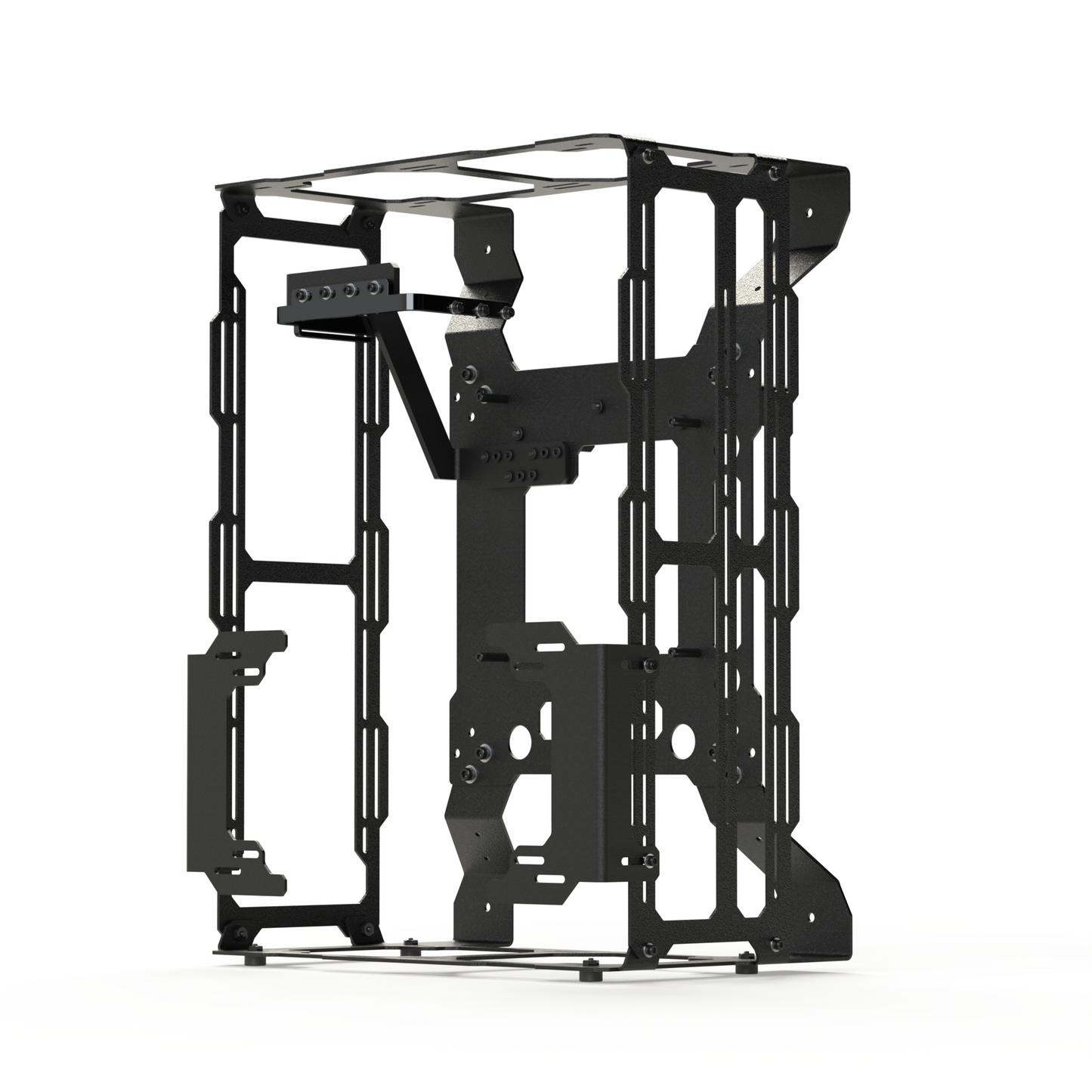

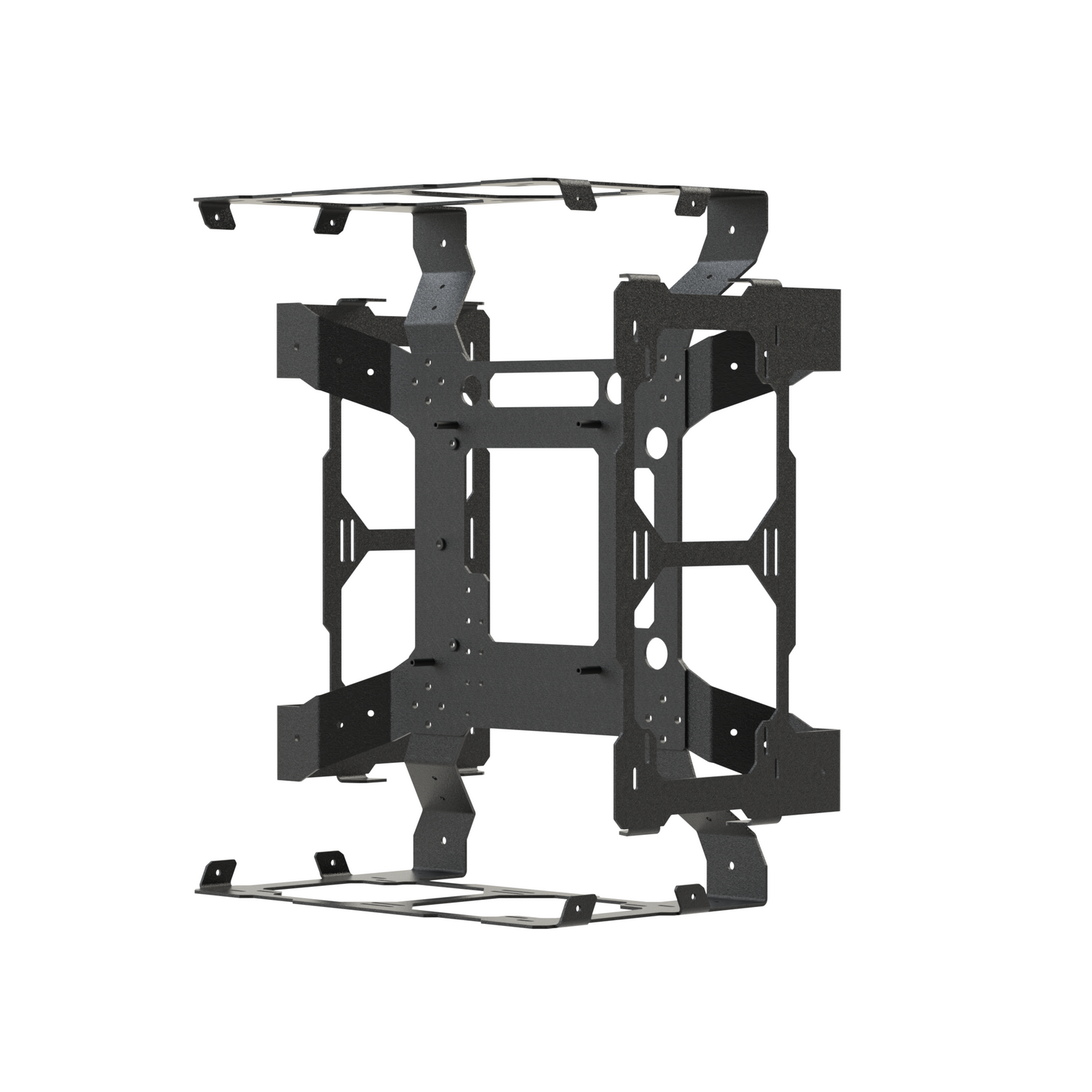

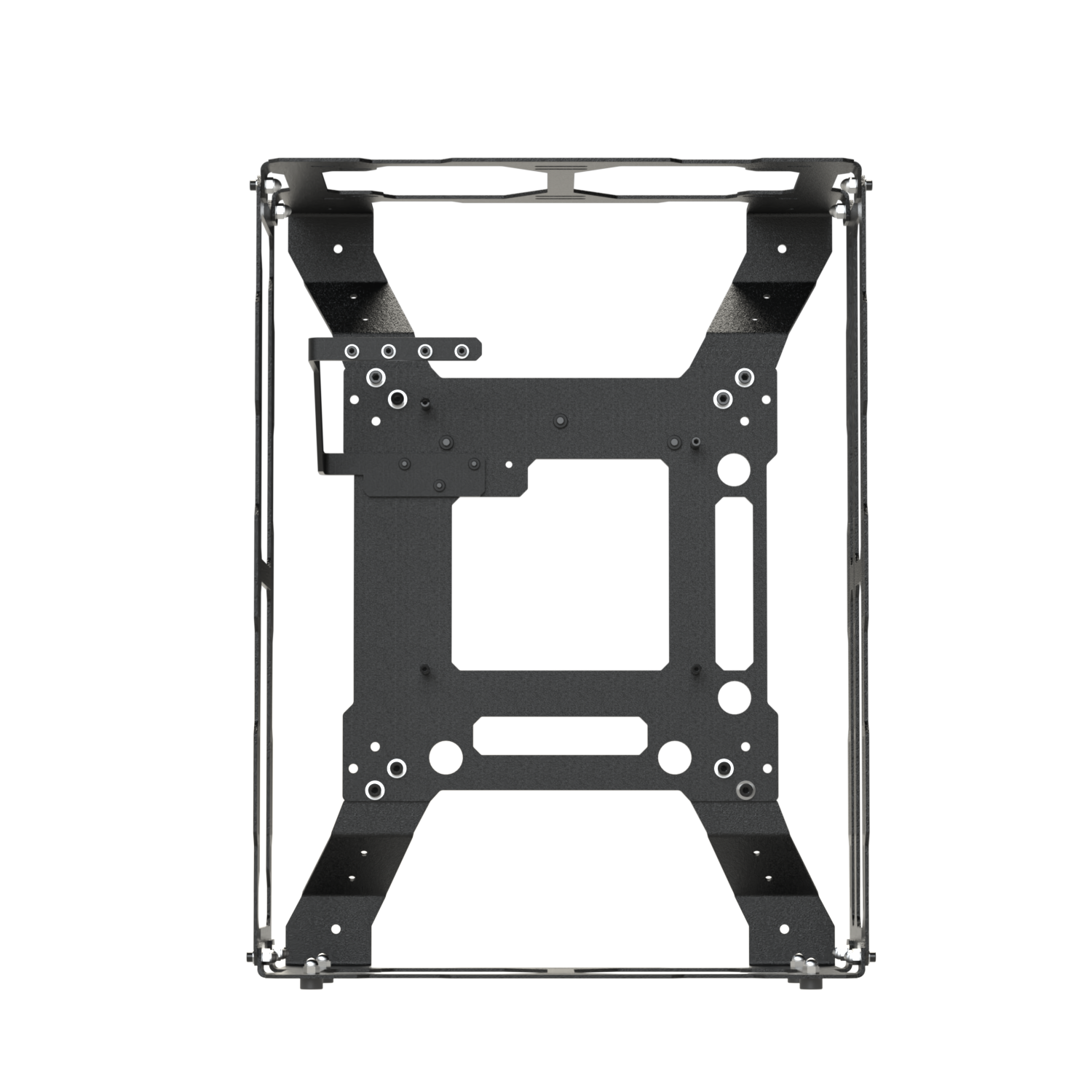

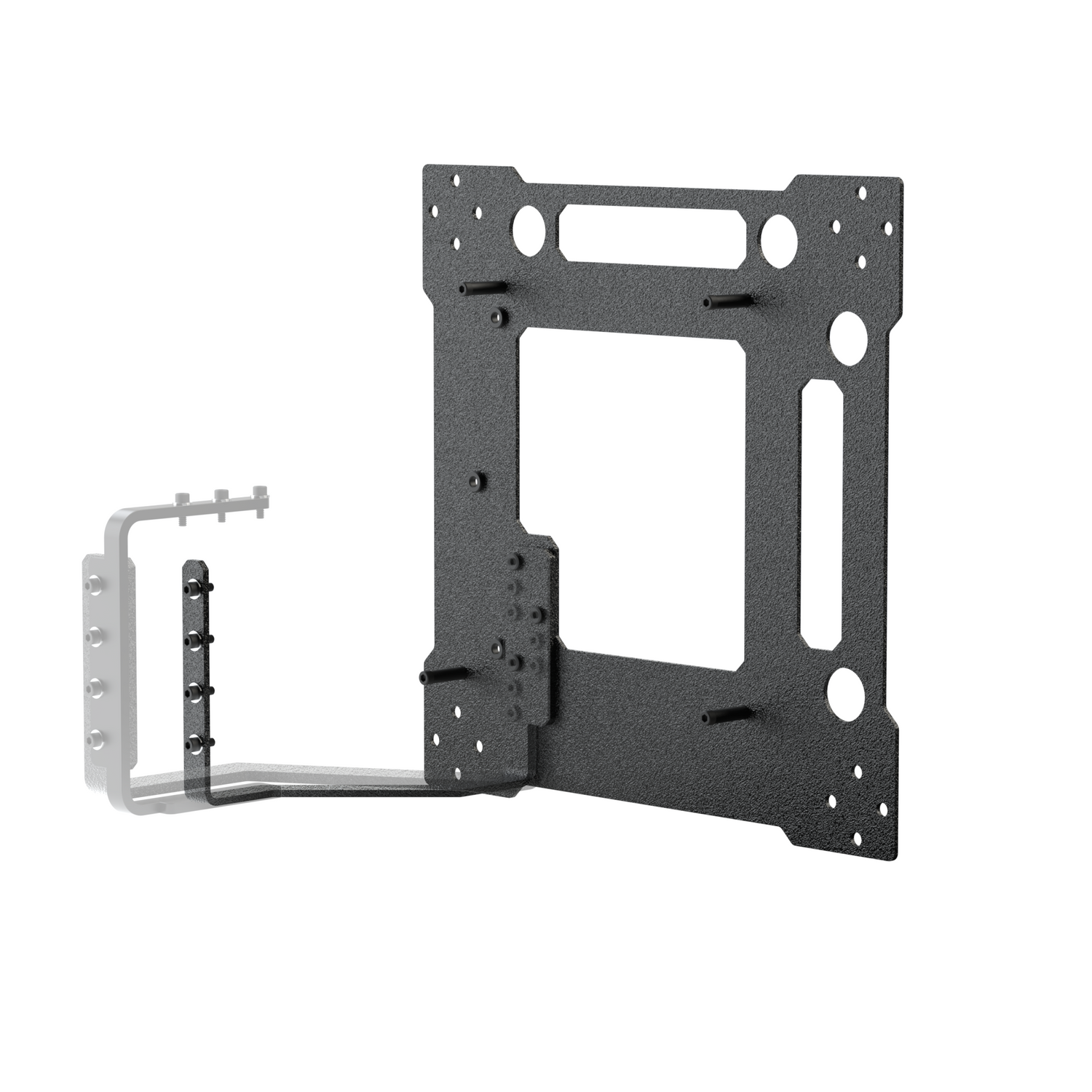

Modular, Fully Open, and Spacious
-EATX, ATX, MATX, ITX-EATX 12”x11” without interrupting Cable Pass-Throughs
-EATX 12”x12” Overlapping Cable Pass-Throughs
-Supports all current GPUs on the market. Near unlimited GPU length based on component choice & mounting
-22" x 16.5" x 13.875", 82.5 liters

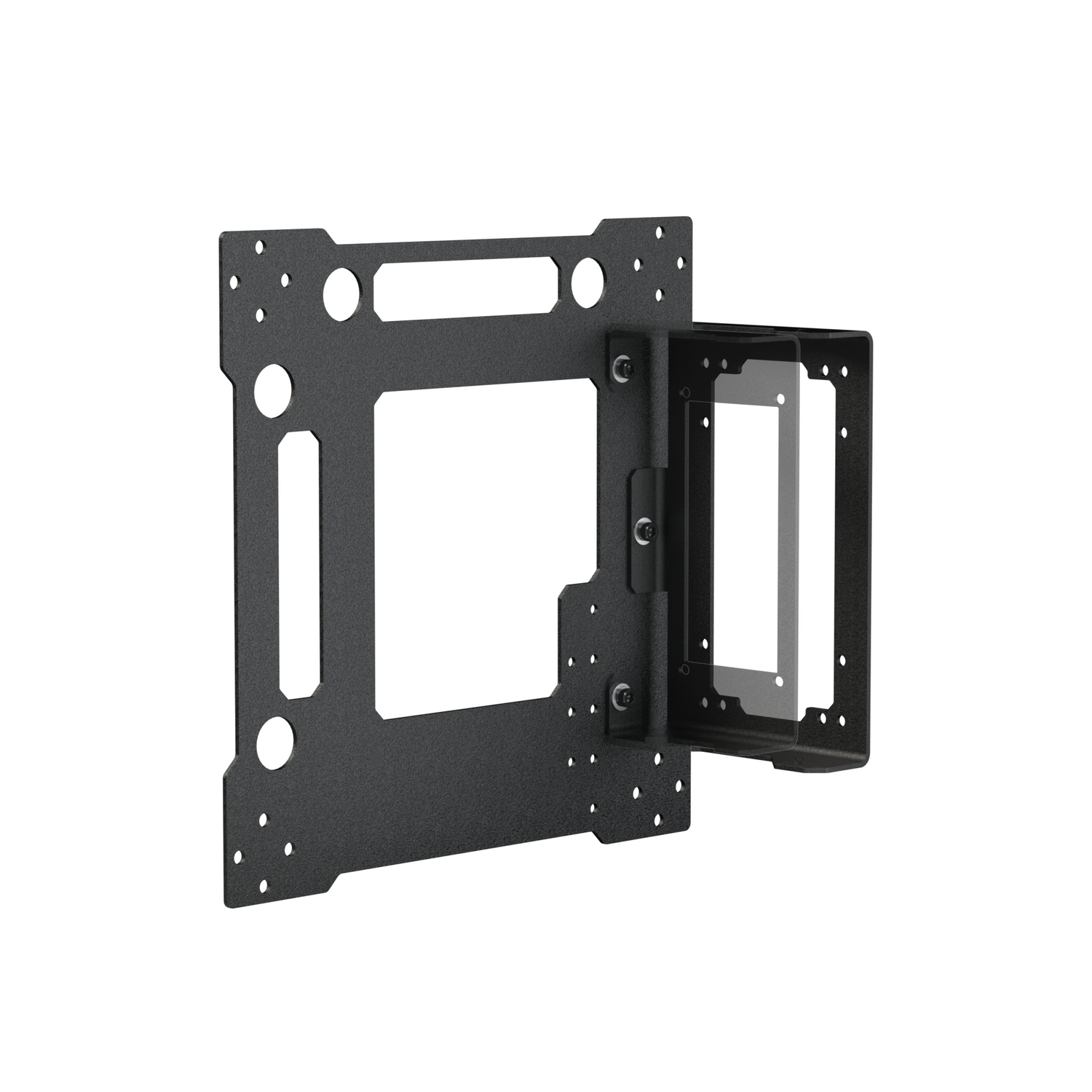

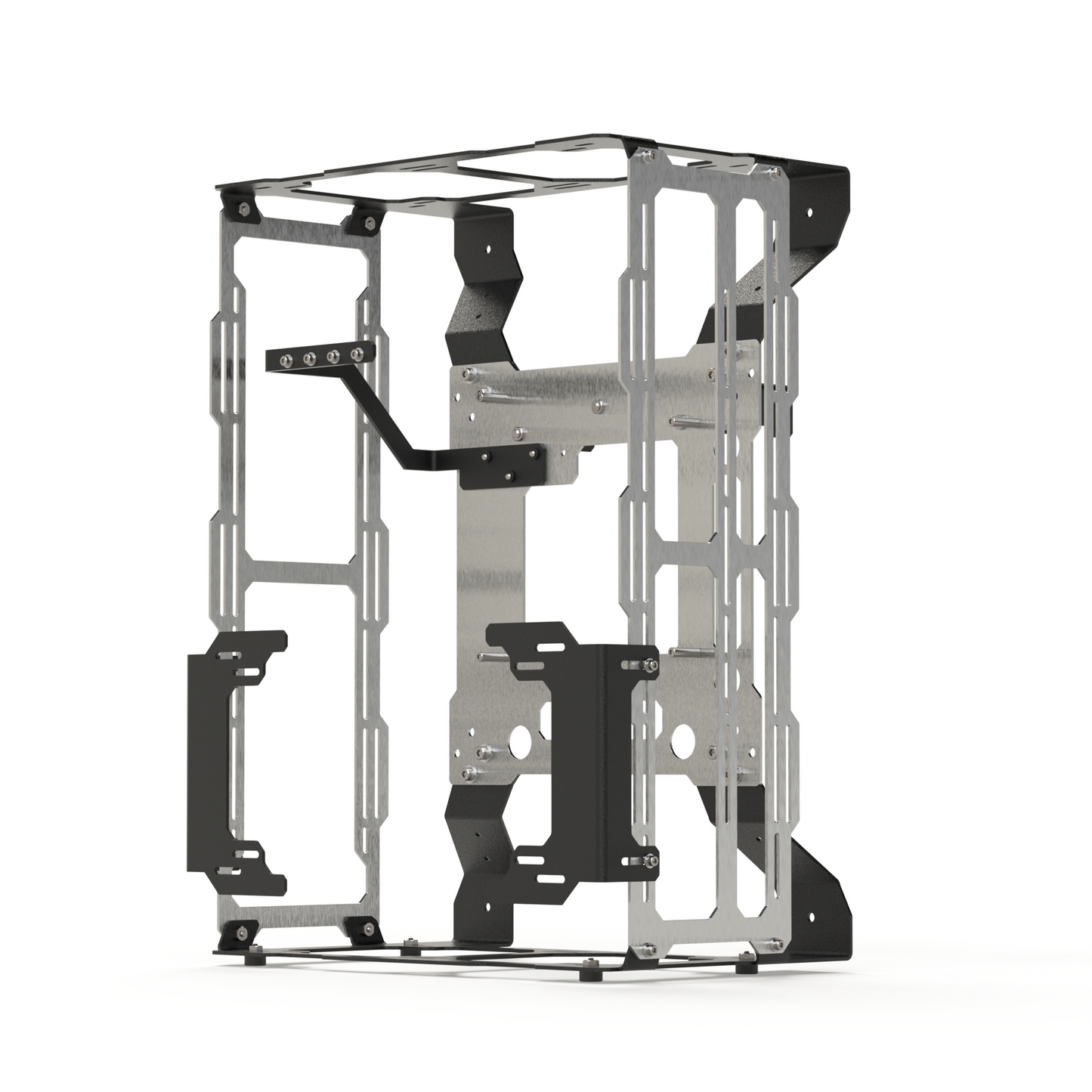

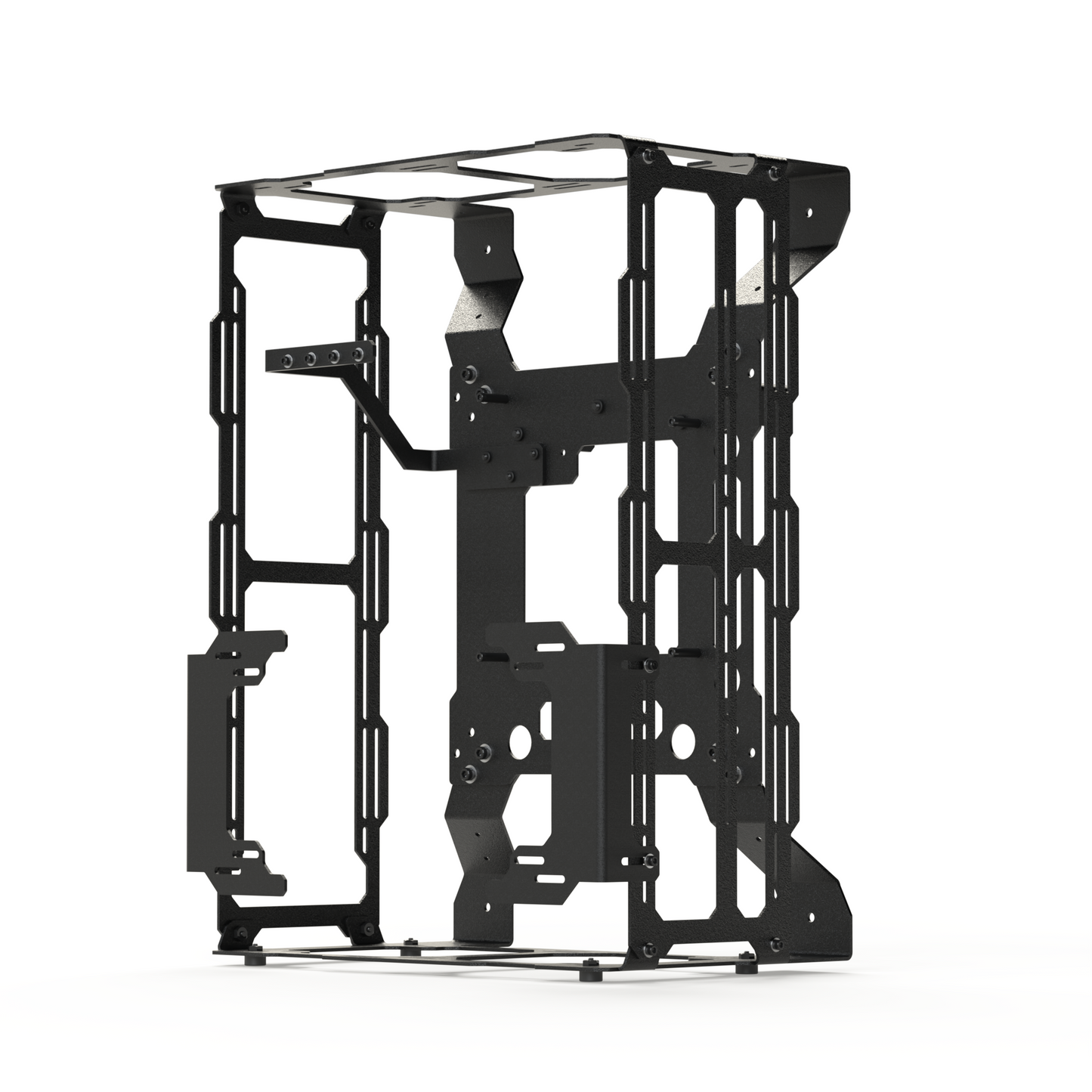

Multi-Purpose PSU Bracket
-ATX PSU Bracket with joggable location for versatile mounting
-2 x 2.5” (SSD) Mounting Location
-2 Additional mounts on MB Plate
-2 x 3.5” (HDD) Mounting Location

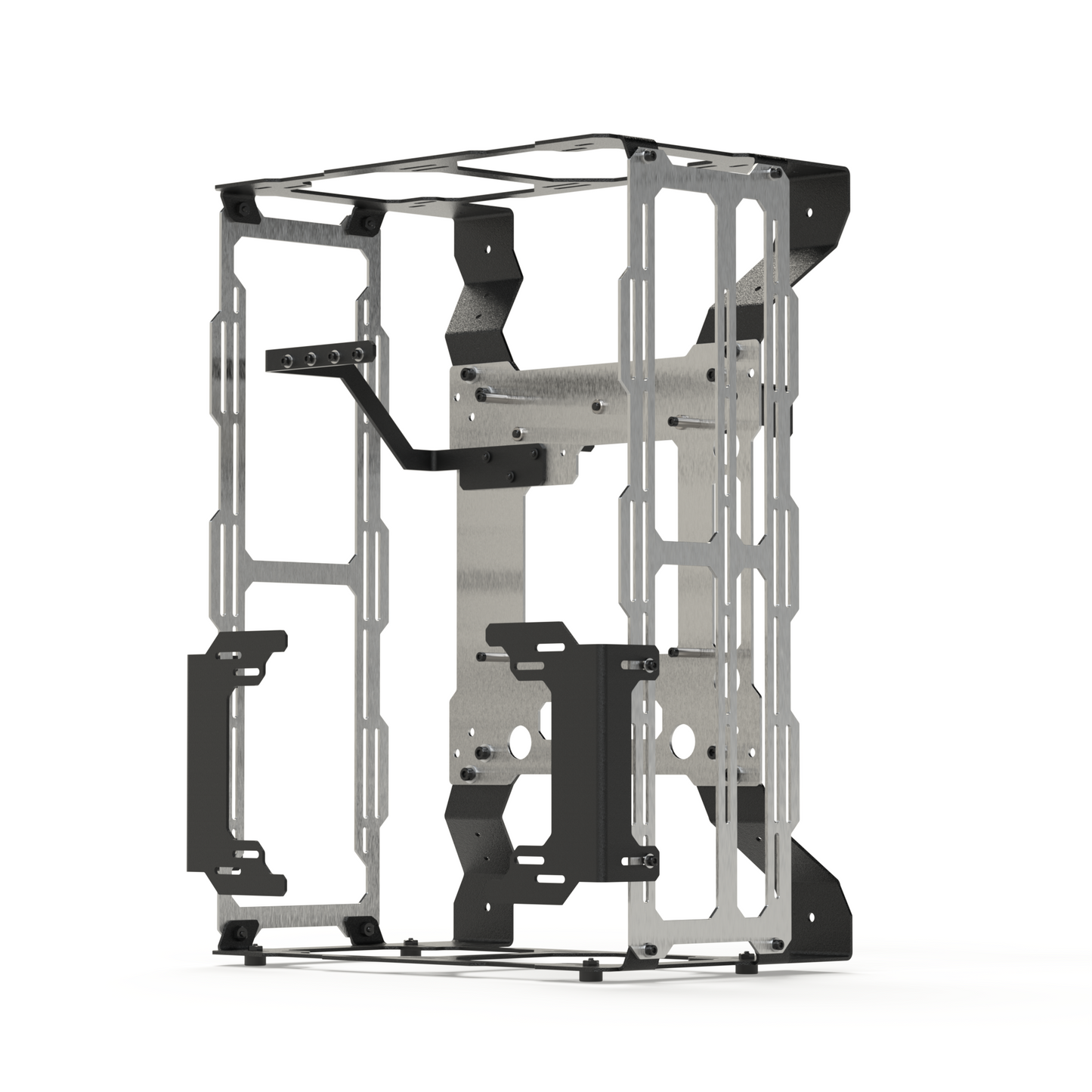

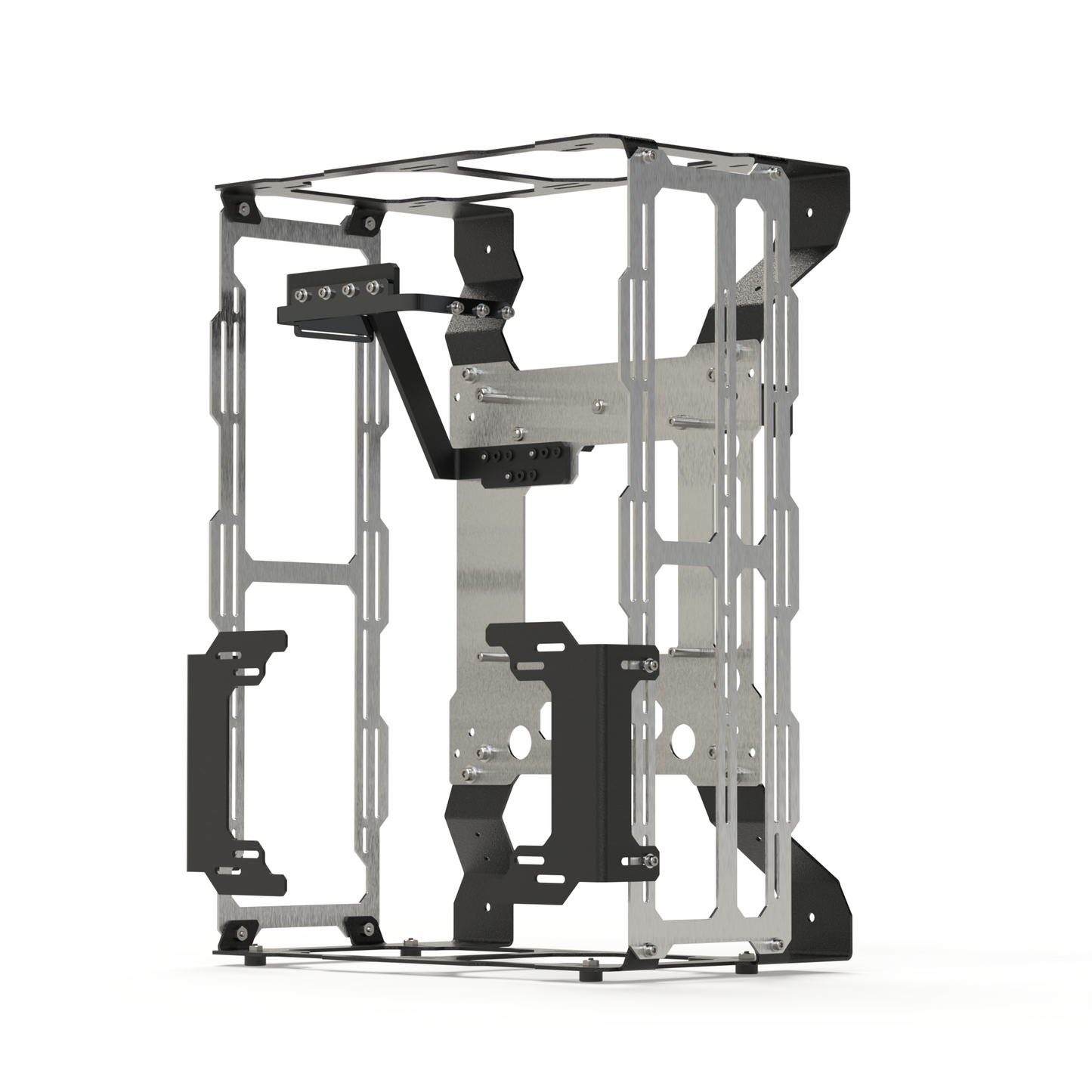

Two Expanded Water Cooling Bracket Options
-Standard WC Bracket (Single Bracket): Reversible bracket with 34mm x 65mm EKWB Mounting pattern or 360mm radiator pattern that mounts to the Inside of the two wings. Only comes in Single.
-Revised WC Bracket (Dual Brackets): New Dual bracket that attaches to the outside of each wing allowing for the use of 360mm radiators while using two brackets. Only Comes in Pairs.
Why Two Options?: Early users were dissapointed that they could not fit a 360mm radiator in between two of the Standard brackets. This inspired the creation of the revised Dual Bracket Design.

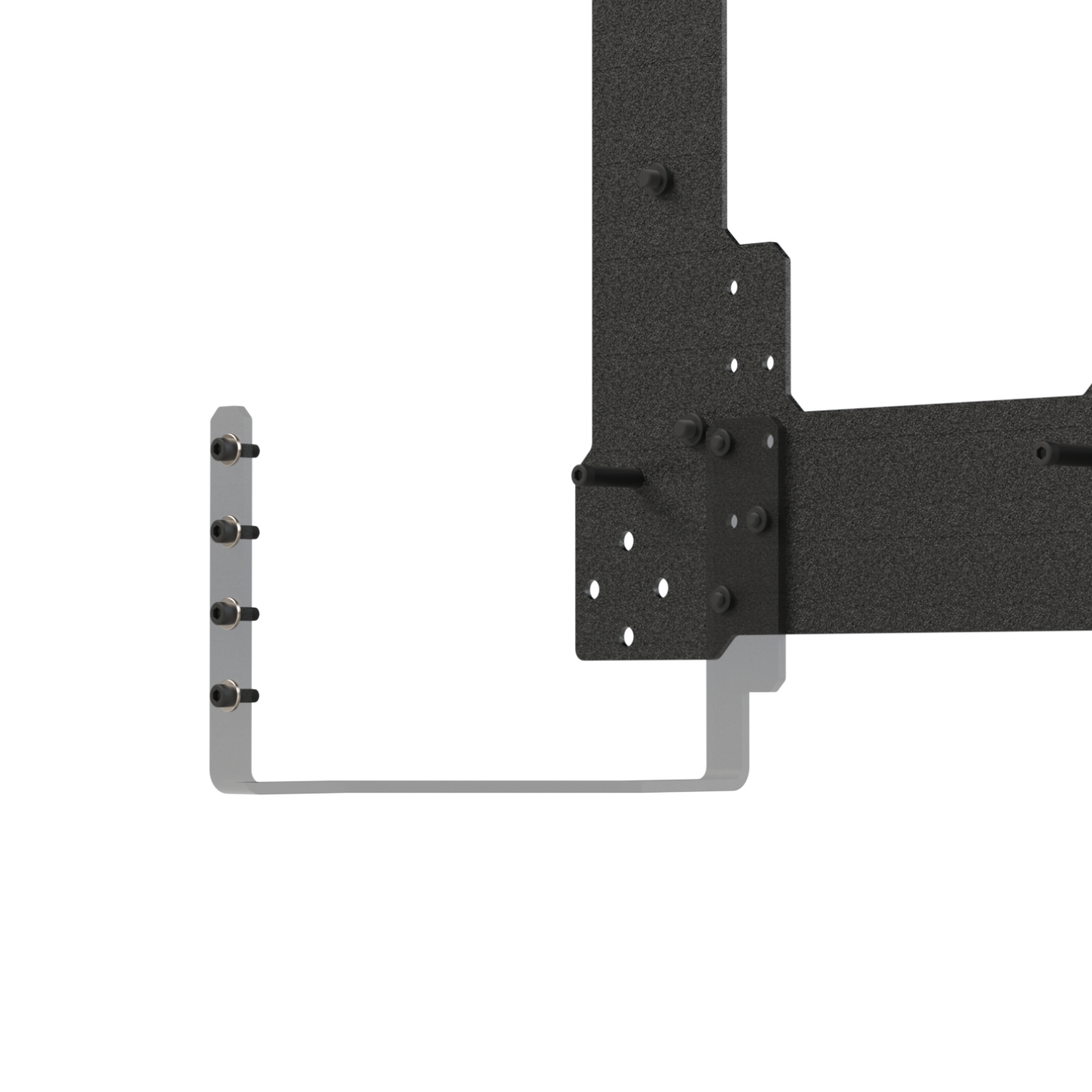

Optional Pump Bracket
Allows for watercooling builds that push the boundaries of conventionall setups. This rail addon uses the EKWB standard pump mounting hole pattern.
