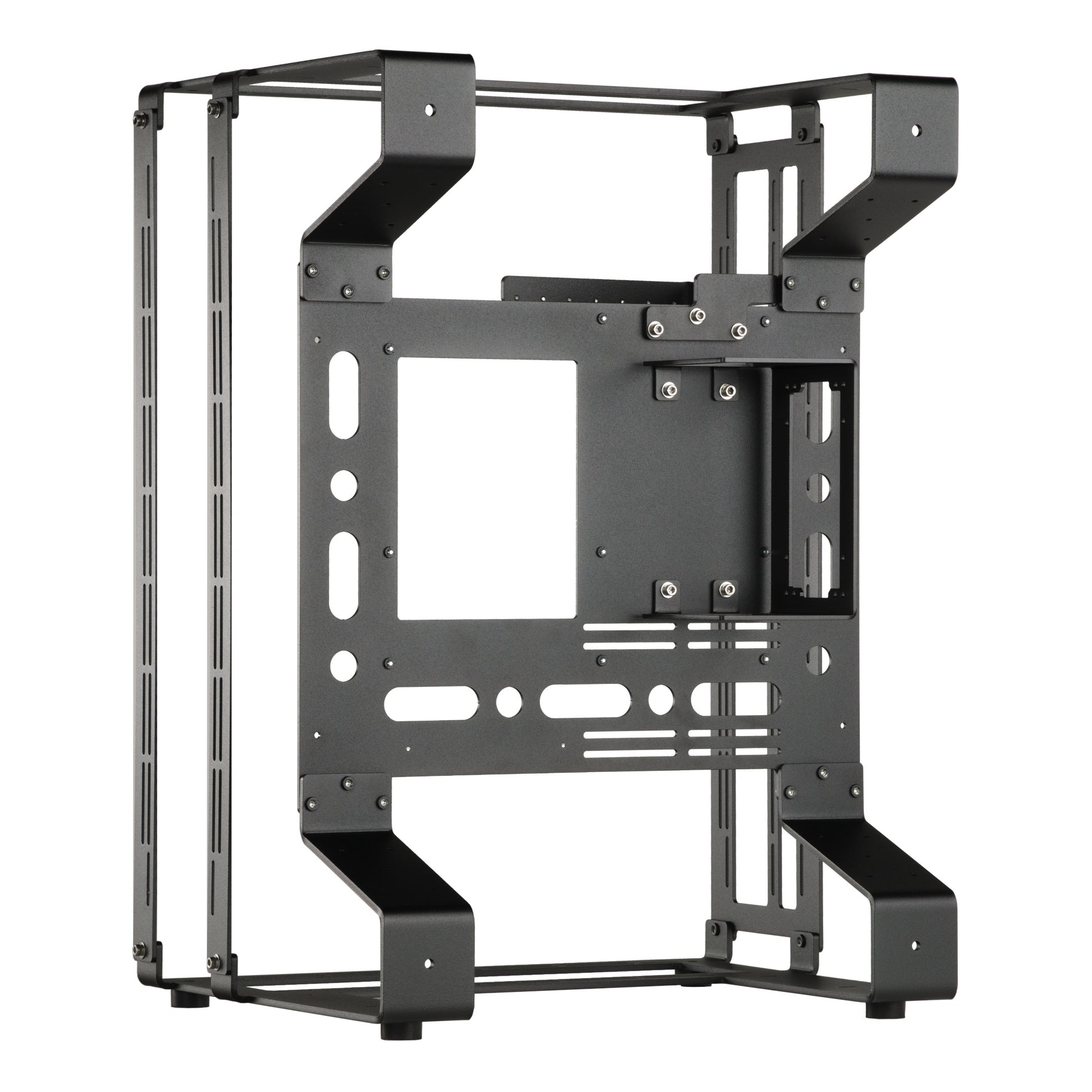

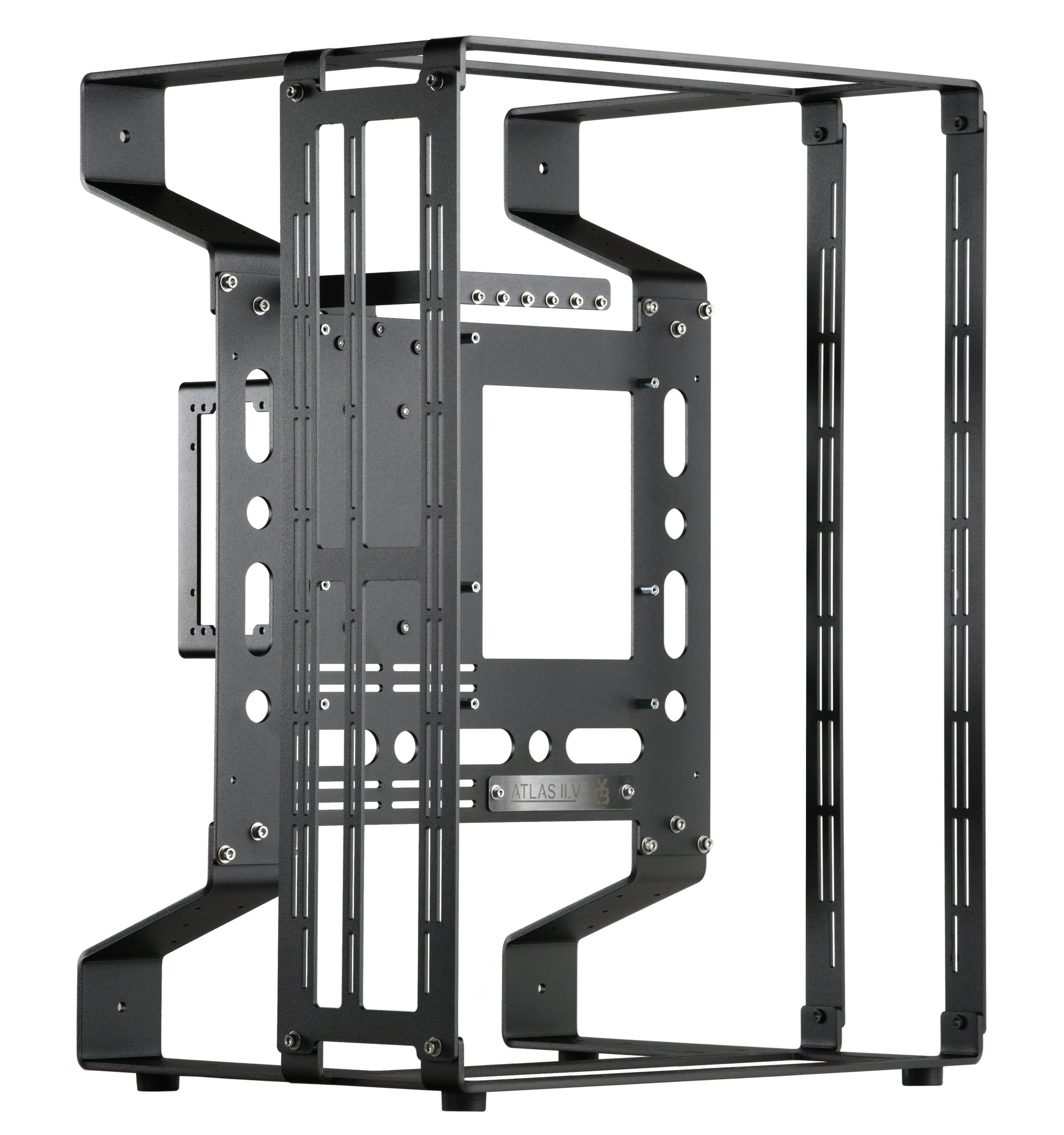

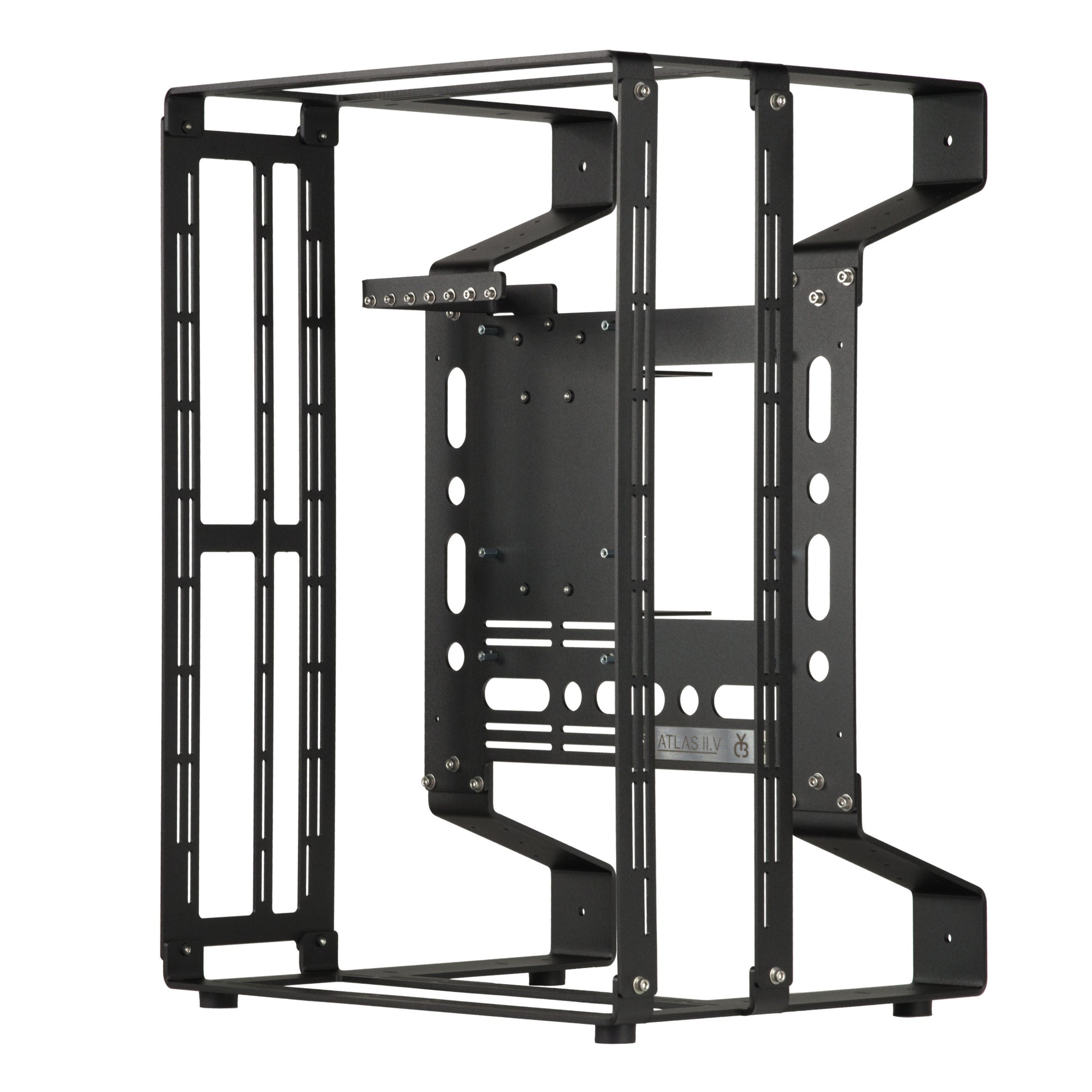

B-Stock Atlas II.V

B-Stock Atlas II.V

B-Stock

These are functional "B-stock" Monuments that did not pass our stringent inspection process. B-Stock units have paint defects, dents, or scratches and are sold "as is". All sales are final.

Due to popular request, I am now default shipping the ATLAS II.V with two pairs of the Revised Hybrid Brackets. If you would like your chassis with both the Revised Hybrid Bracket and the Multifunctional bracket as is shown in the product picture, select the options below.

$319.00 USD
$0.00 USD $319.00 USD
Sale Sold out
Shipping calculated at checkout.
Radiator Side Brackets

Shipping Now

Materials

.187" / 4.5mm HRPO Steel | .118" / 3mm CRS Steel

Fabrication

Laser Cut - Deburred - Tapped - Formed - Inspected - Painted with a Black Light Granular Powder Coat

Dimensions

24 x 17.75 x 13.87 | 82 Litres

Packing

Custom CNC Cut Foam - Ships in a 24" x 16" x 12" Box

Compatability

ITX - mATX - ATX - eATX

View full details

  • What's in the box?

    • Motherboard Plate, Wings, PSU & GPU Mounting Bracket
    • Motherboard Standoffs
    • Chassis fasteners ( 10-32 SHMS & 6-32 SHMS)
    • Hex Wrench (7/64 & 5/32)
    • 19mm Power Button & Wire
    • Machine Screw Mounted Reinforced Rubber Feet

  • TLDR

    • Wings Support up to 280mm & 360mm Radiators
    • Side Brackets support up to 420mm & 480mm Radiators
    • Designed for ATX, eATX Compatible
    • 1/8 (3mm) & 3/16 (4.5mm) Powder Coated Steel Construction
    • Built in addon support for GPU Support Bracket, Pump Mounting Bracket, and future paneling
    • 24 x 17.75 x 13.87 | 82 Litres

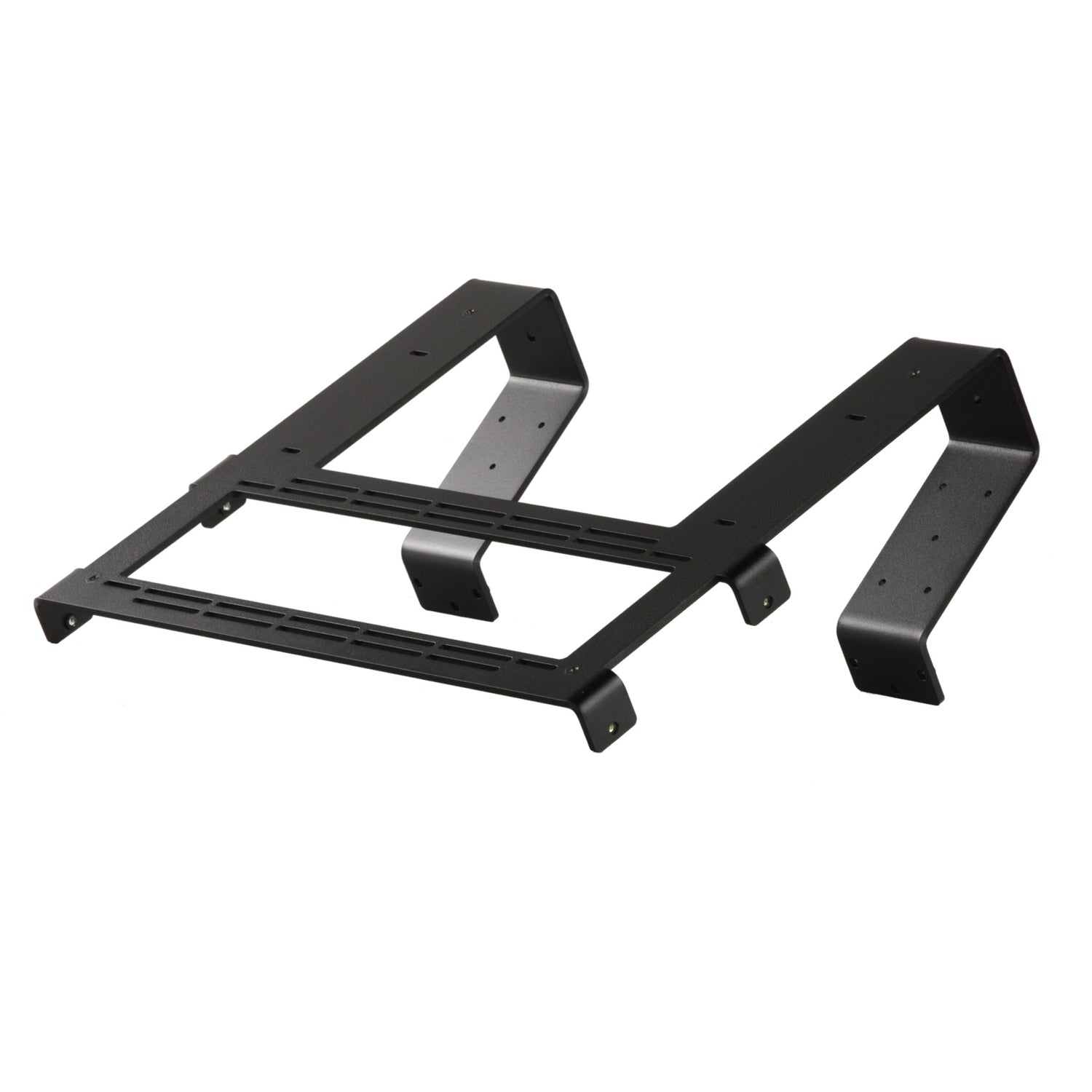

The Original Wing Design, But Better.

Each of the two wings support:

  • One set of standard radiator hole patterns for 360, 280, or 240mm radiators
  • One additional 360mm standalone radiator pattern
  • 2 sets of EK accessory mounting holes (34x65mm)
  • Mounting Holes for Pump Spanning Bracket & Other Accessories.
  • Improved side bracket funtionality with formed mounting points

Modular, Fully Open, and Spacious

  • EATX, ATX, MATX, ITX-EATX Compatability
  • Supports all current GPUs on the market. Near unlimited GPU length based on component choice & mounting
  • Compatabile with unthreaded spacers to allow for even more internal Radiator Clearance
  • Mounting slots for GPU Support and other future addons

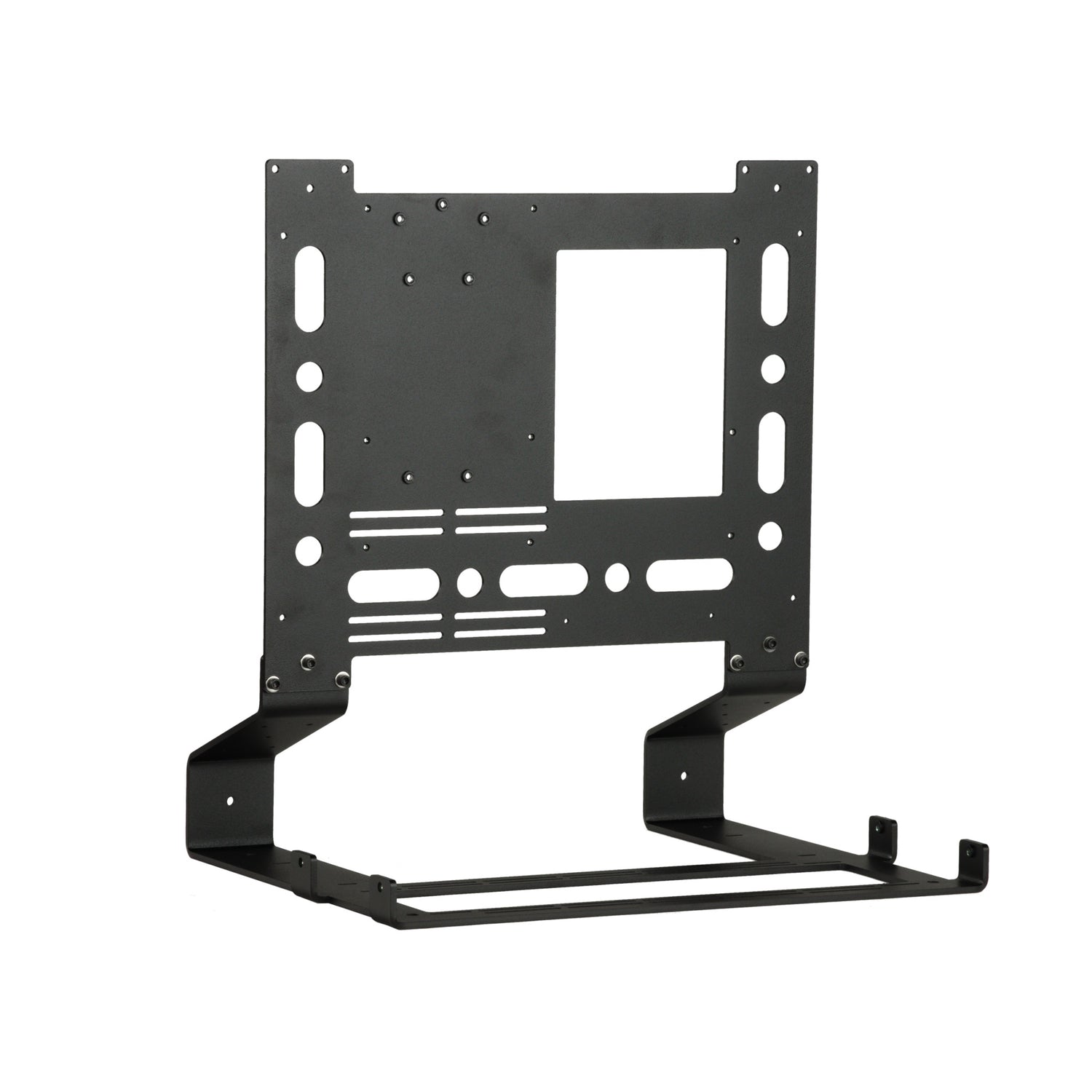

Enhanced Motherboard Plate

  • Four mounting locations for GPU Support Bracket
  • Six through holes for passthroughs or power buttons.
  • ATX Motherboard cable cutouts

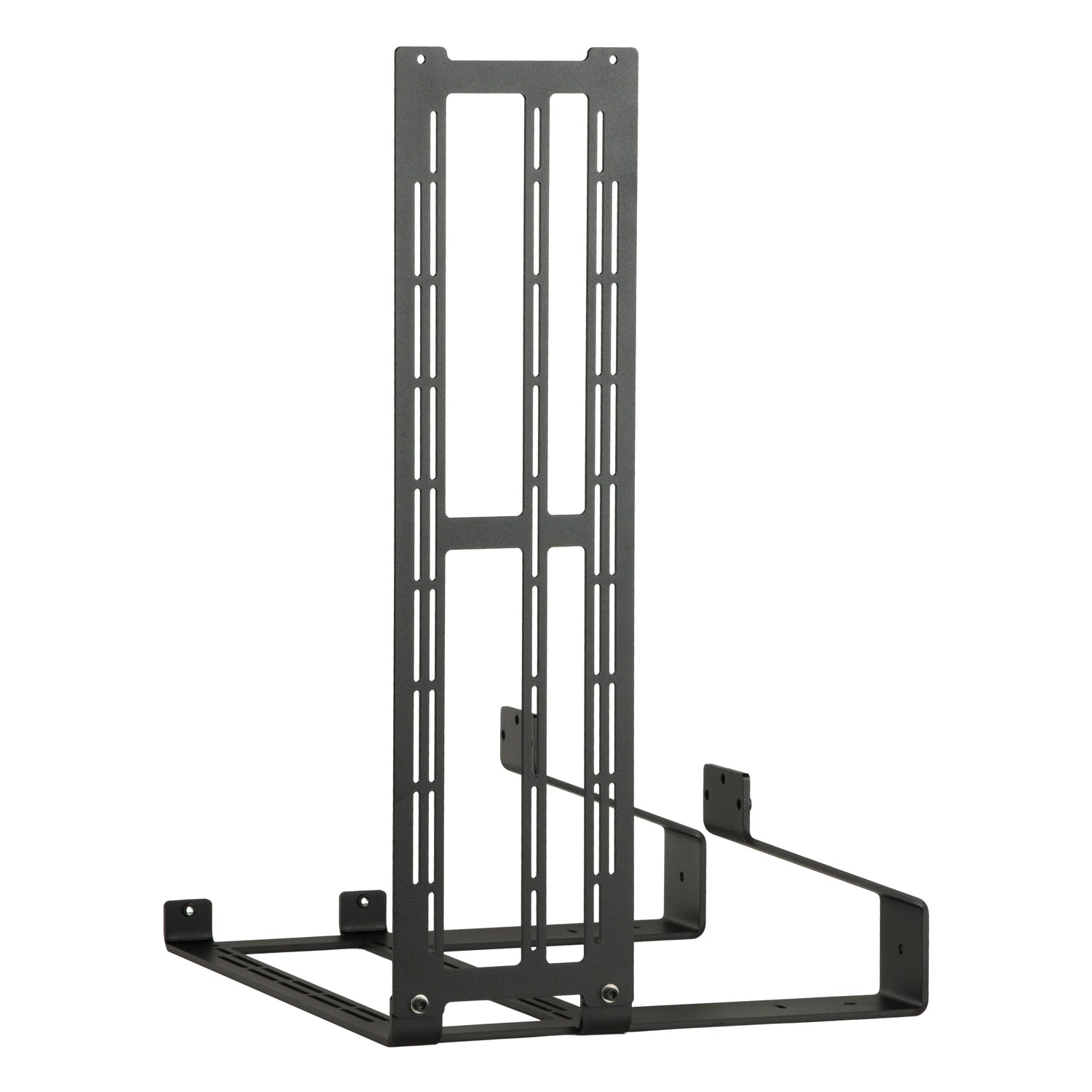

Multifunctional Pump Bracket

  • 65mm EKWB Pump Pattern
  • 120mm & 140mm Fan Support

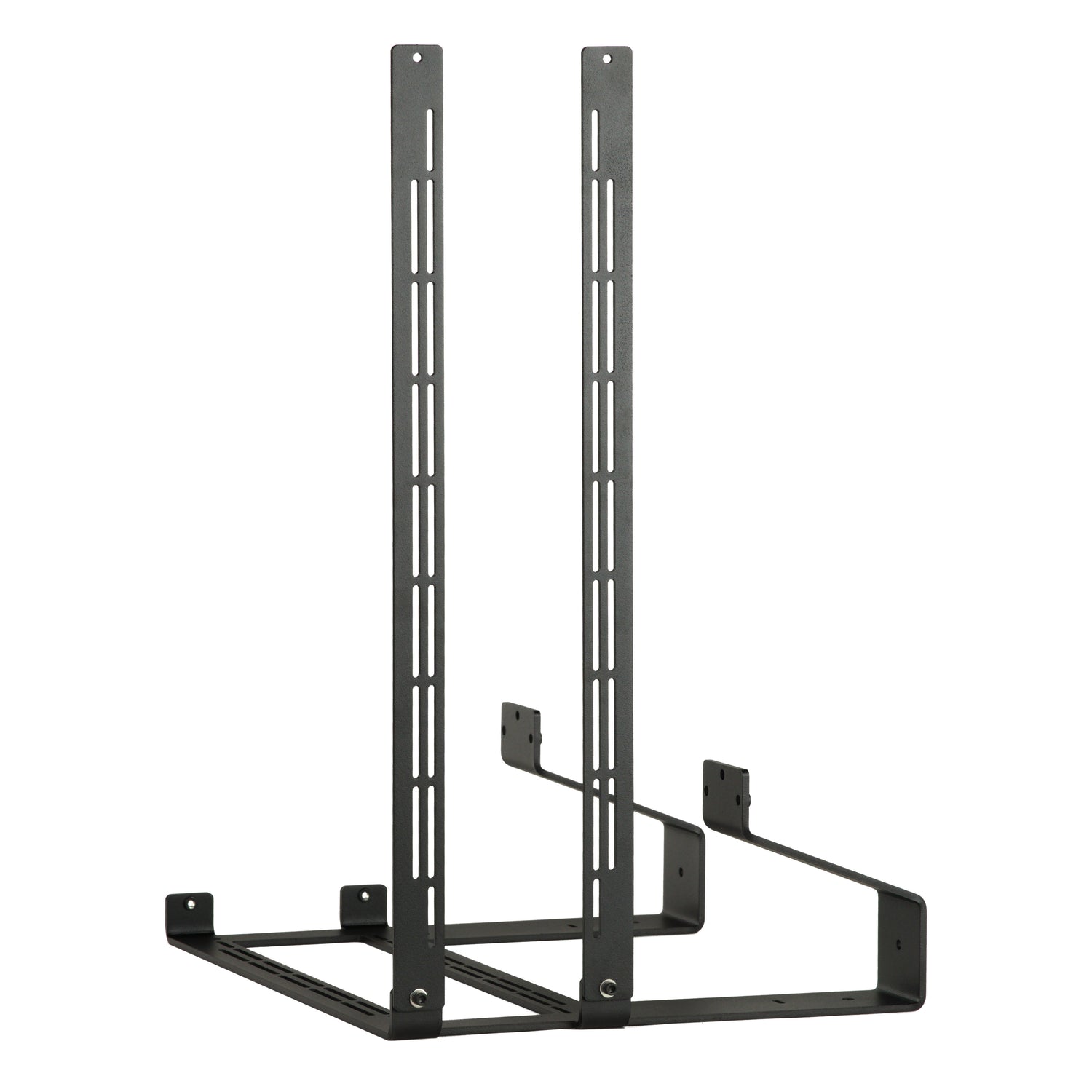

Revised Hybrid Bracket

  • 3.5" clearence between supports for bulkheads
  • 120mm & 140mm Fan Support

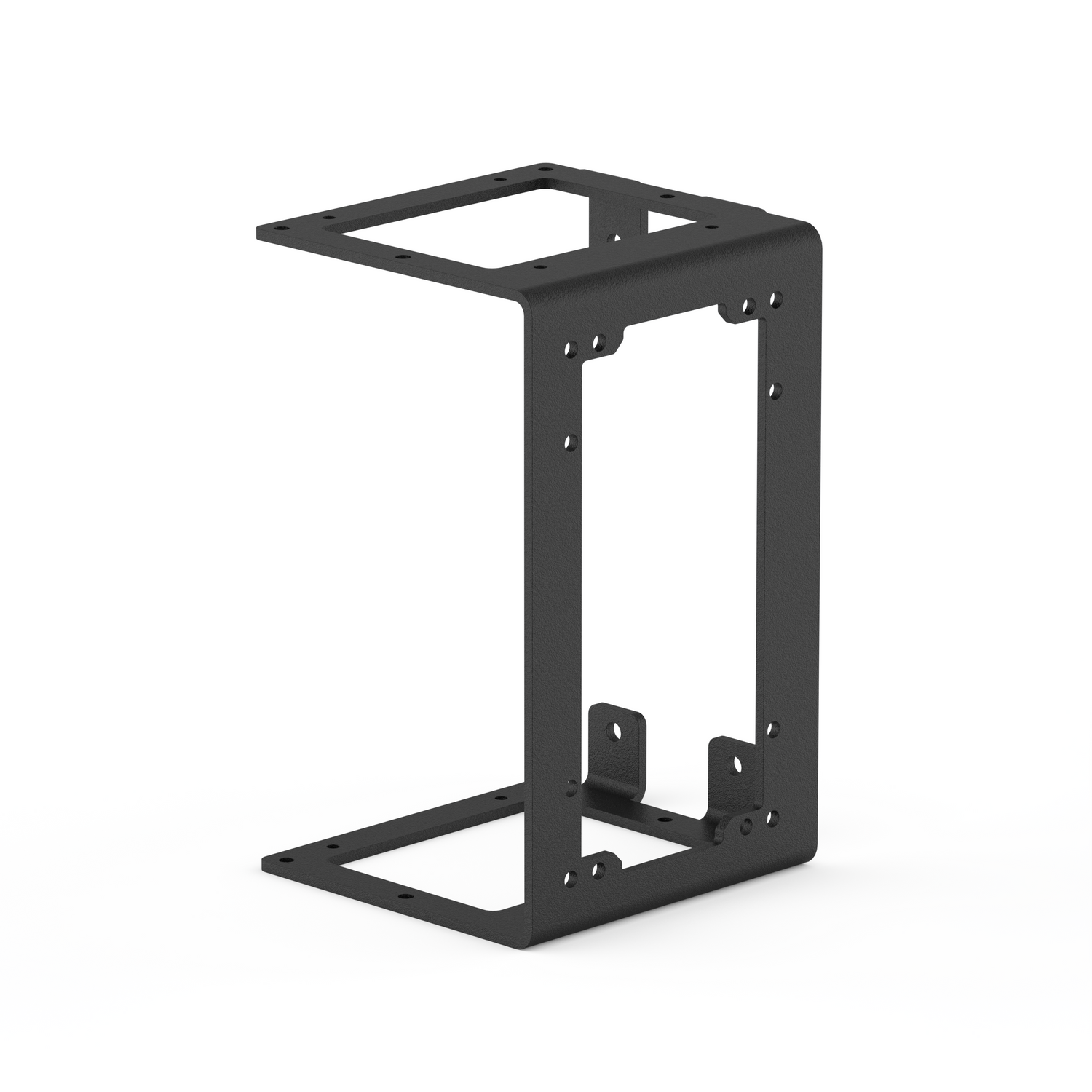

Multi-Purpose PSU Bracket

  • ATX PSU Bracket
  • 2 x 2.5” (SSD) Mounting Location
  • 2 x 3.5” (HDD) Mounting Location

Optional Pump Bracket

Allows for watercooling builds that push the boundaries of conventionall setups. This rail addon uses the EKWB standard pump mounting hole pattern.
