Yuel Beast Designs

Atlas II

Atlas II

Regular price $380.00 USD
Regular price Sale price $380.00 USD
Sale Sold out
Shipping calculated at checkout.
Bracket Version
Chassis Hardware
Pump Bracket

Estimated Shipping: Late September

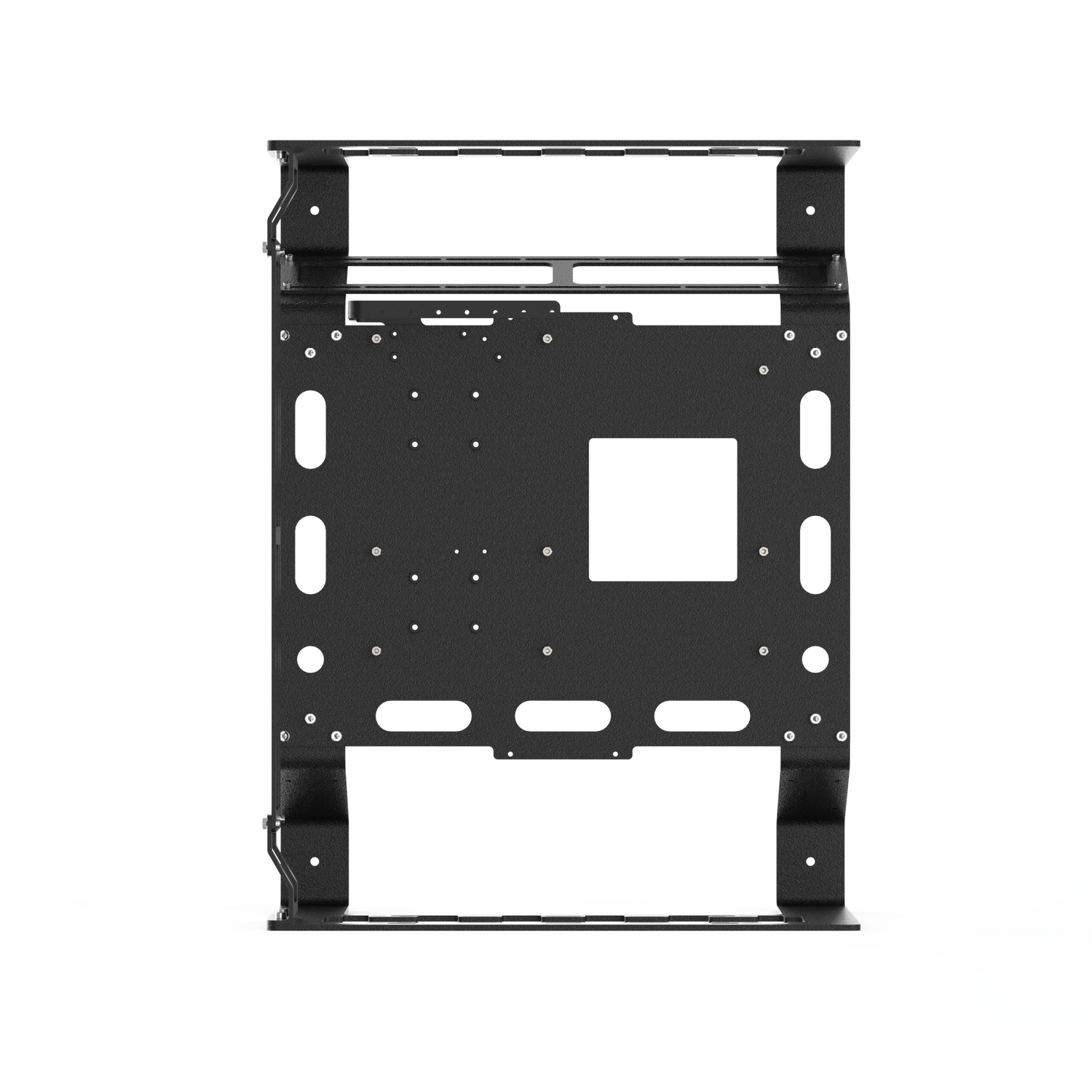

Developed to be the most robust, utilitarian pc chassis possible, this Atlas platform is a substantial improvement over the legacy design with even more flexibility and potential for building a beautiful overkill water cooled system.

Note:
As of this most recent batch, we are removing all non essential hardware from the product. Only hardware needed for the products assembly will be included. This change is based on feedback from past product iterations and EKWB's most recent change to move towards M4 mounting hardware. As of now, there are three different standards for radiator & pump mounting; M3, M4, & 6-32. When purchasing hardware please be aware that you will need to account for the 4.5mm (3/16) of chassis wing thickness if screwing through the chassis. Hardware packs will be made available for purchase.

Materials

.187" / 4.5mm HRPO Steel | .118" / 3mm CRS Steel

Fabrication

Laser Cut - Deburred - Tapped - Formed - Inspected - Painted with a Black Light Granular Powder Coat

Dimensions

Packing

Custom CNC Cut Foam - Ships in a 20" x 16" x 10" Box

Compatability

ITX - mATX - ATX - eATX

View full details
  • Free Domestic Shipping

    -Included shipping to USA, discounted shipping Worldwide.

    -Note: Not responsible for country specific duties & taxes.

    Shipping Policy
  • Giving back

    -$10 of purchase will be donated to Covenant House New Jersey, learn more about their mission here

    Mission

What's in the box?

Chassis selection (Motherboard Plate, Wings, PSU Bracket, GPU Mounting Bracket)

Motherboard Standoffs

Chassis fasteners ( 10-32 SHMS & 6-32 SHMS)

Hex Wrench (7/64 & 5/32)

19mm Power Button & Wire

Adhesive Black Rubber Feet

User Guide

The Original Wing Design.

Each of the two wings support:

-One set of standard radiator hole patterns for 360, 280, or 240mm radiators-One additional 360mm standalone radiator pattern

-2 sets of EK accessory mounting holes (34x65mm)-Room for two detachable 360mm accessory brackets (one included by default)

Modular, Fully Open, and Spacious

-EATX, ATX, MATX, ITX-EATX 12”x11” without interrupting Cable Pass-Throughs

-EATX 12”x12” Overlapping Cable Pass-Throughs

-Supports all current GPUs on the market. Near unlimited GPU length based on component choice & mounting

-22" x 16.5" x 13.875", 82.5 liters

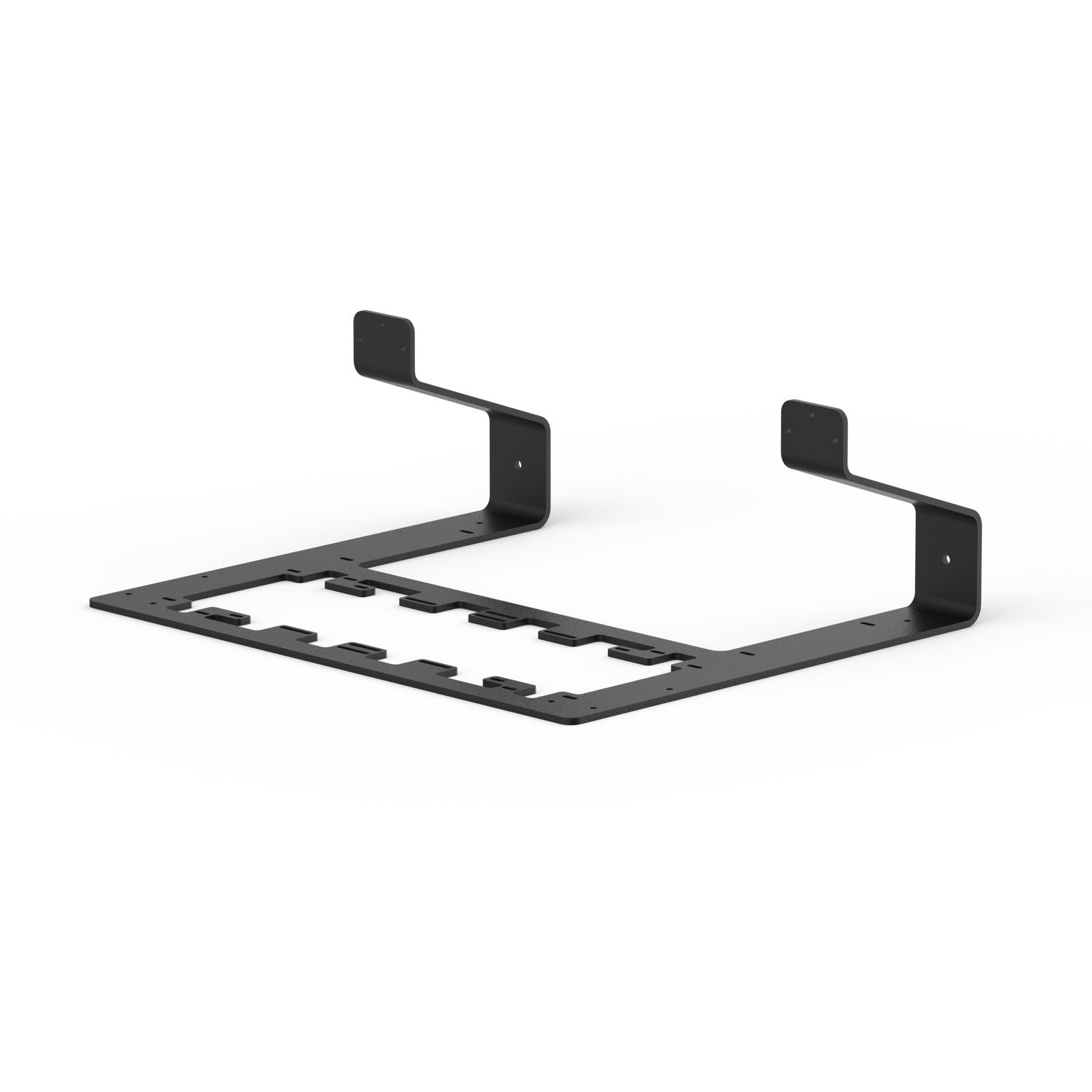

Multi-Purpose PSU Bracket

-ATX PSU Bracket with joggable location for versatile mounting

-2 x 2.5” (SSD) Mounting Location

-2 Additional mounts on MB Plate

-2 x 3.5” (HDD) Mounting Location

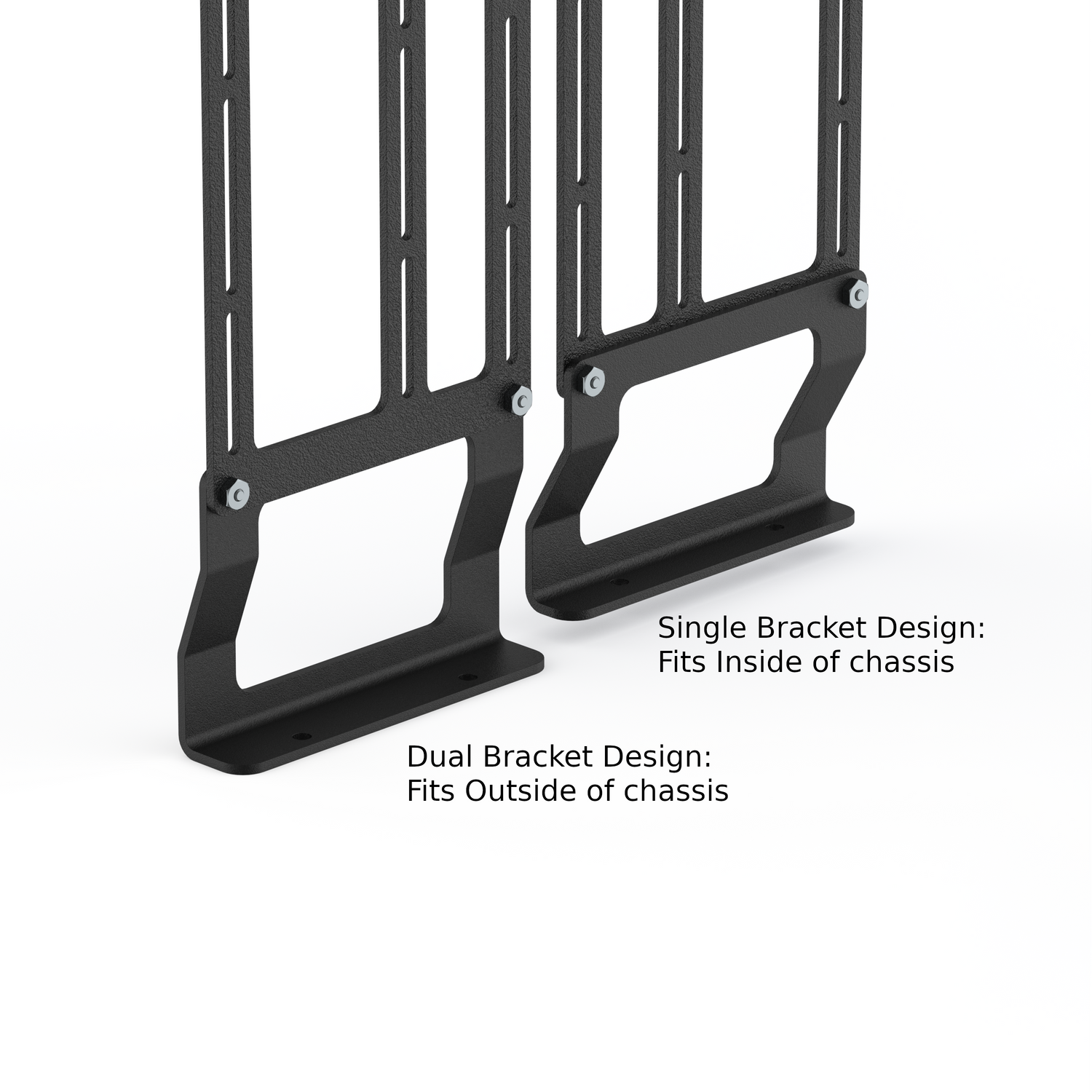

Two Expanded Water Cooling Bracket Options

-Standard WC Bracket (Single Bracket): Reversible bracket with 34mm x 65mm EKWB Mounting pattern or 360mm radiator pattern that mounts to the Inside of the two wings. Only comes in Single.

-Revised WC Bracket (Dual Brackets): New Dual bracket that attaches to the outside of each wing allowing for the use of 360mm radiators while using two brackets. Only Comes in Pairs.

Why Two Options?: Early users were dissapointed that they could not fit a 360mm radiator in between two of the Standard brackets. This inspired the creation of the revised Dual Bracket Design.

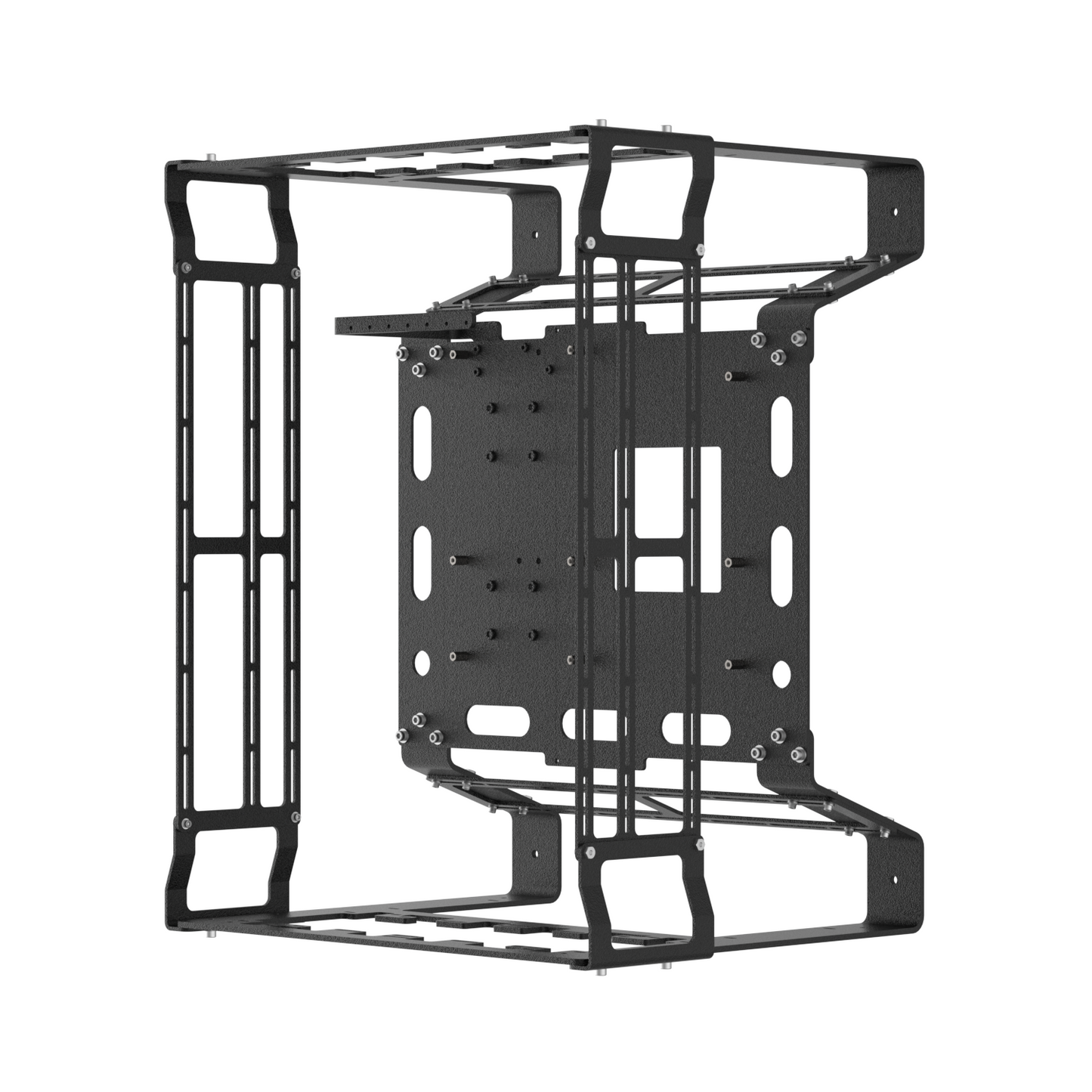

Optional Pump Bracket

Allows for watercooling builds that push the boundaries of conventionall setups. This rail addon uses the EKWB standard pump mounting hole pattern.
